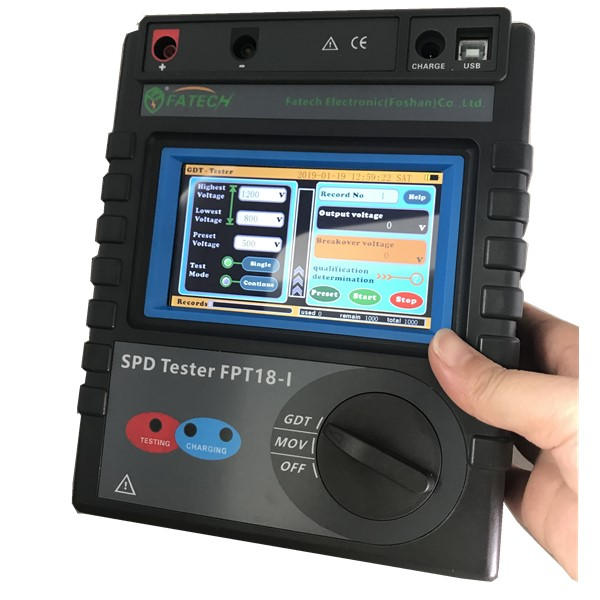

Portable MOV&SPD Tester

FPT18-I series intelligent lightning protection component tester is used to measure the performance parameters of various metal oxide varistors (MOV) and Gas discharge tubes (GDT).

Portable MOV&SPD Tester

Model No. : FPT18-I


1. Introduction

The tester has high-voltage short-circuit protection, over-current protection, high-voltage presetting, range adjustment, self-inspection function, measurement range of spark voltage U1mA: 0~2000V, measurement range of leakage current: 0~ 499.9μa, good repeatability. It also has the function of setting up qualified range and judging and screening qualified products. Widely used in lightning protection component, surge protector and other over voltage protection components performance parameters test.

The instrument adopts finger touch color screen, direct function, one-button measurement, easy and fast operation, with excellent test stability and anti-interference ability. At the same time, the meter is build in a large capacity rechargeable lithium battery, and with data storage, qualified judgment, automatic shutdown, USB data upload and other functions.

FPT18-I series lightning components tester has shockproof, dustproof, moisture-proof structure, the whole machine is beautiful and durable, adapt to bad working environment. It is the commonly used necessary instruments in the lightning protection, power, communication, electromechanical installation and maintenance, lightning protection components manufacturers, and industrial enterprise departments.

2.Range and measurement accuracy

Functions

Item

Measuring range

Accuracy of measurement

Resolution

MOV

U1mA

0 ~ 2000 v

±2% RDG 3 DGT

1 v

Leakage current

0 ~ 499.9 u A

±2% RDG 10 DGT

0.1 μA

GDT

Breakdown voltage

10 ~ 2000 v

±2% RDG 3 DGT

1 v

Test conditions:   MOV: 1mA + 5 μ A;  GDT: 100V/S


3.Other technical parameters

Battery

DC 7.2V 2600maH rechargeable lithium battery (standby for more than 3 hours continuously)

Measuring way

Dc voltage drop method

Shift

Fully automatic shift

Display mode

Finger touch color screen

The LCD size

108 mm * 65 mm

Size

212 mm * 175 mm * 76 mm

Mass quantity

1200 g

The test line

Red 1 meter, black 1 meter; Two alligator clips and two watch pens

Over voltage protection

Yes

Data Storage

MOV test: 1000groups, GDT test 1000 groups, insulation resistance 1000 groups

Test log viewer

Yes

Overflow shows

The symbol "9999.99" indicates when the over range occurs

Test mode

Single mode: no preset needed, for a few test.

Continue mode: preset needed, for a batch test.

Data export

USB interface, test log record data upload computer, can be exported to Excel format.

The battery voltage

Battery power indicator shows that the battery power is pressed down to remind timely charging.

Automatic shutdown

Automatically shut down affter 15 minutes no operation

Power consumption

Standby: about 140mA, measurement: about 830mA

accessories

1 piece of main tester; 2 test lines; 2 alligator clips; 2 meter pens; 1 charger; 1 USB communication line; Aluminum box 1 piece

4.Instrument structure



    FPT18-l users manual.pdf
