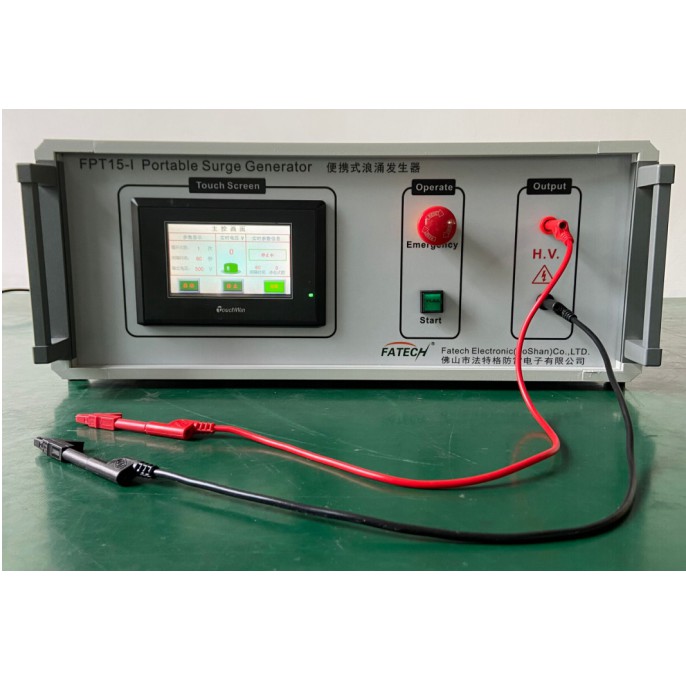

LCD Display Screen Surge Counter Tester

LCD display screen Surge Counter Tester

Model No. : FPT15-IL


The surge generator is able to release max. discharge current 2.5kA, realized one-key operation of charging and discharging. With LED display screen, more convenient for operation.


I. Technical data

Current waveform

8/20μS±20%（GB/T17626.5）

Output voltage

50V-1200V ±5%

Voltage polarity

Positive

Output impedance

0.2Ω（±0.05Ω）

Output short current

100A-3KA

Interval time

10-999

Number of discharge cycles

1-999

Working power supply

AC220V±10%,50/60HZ

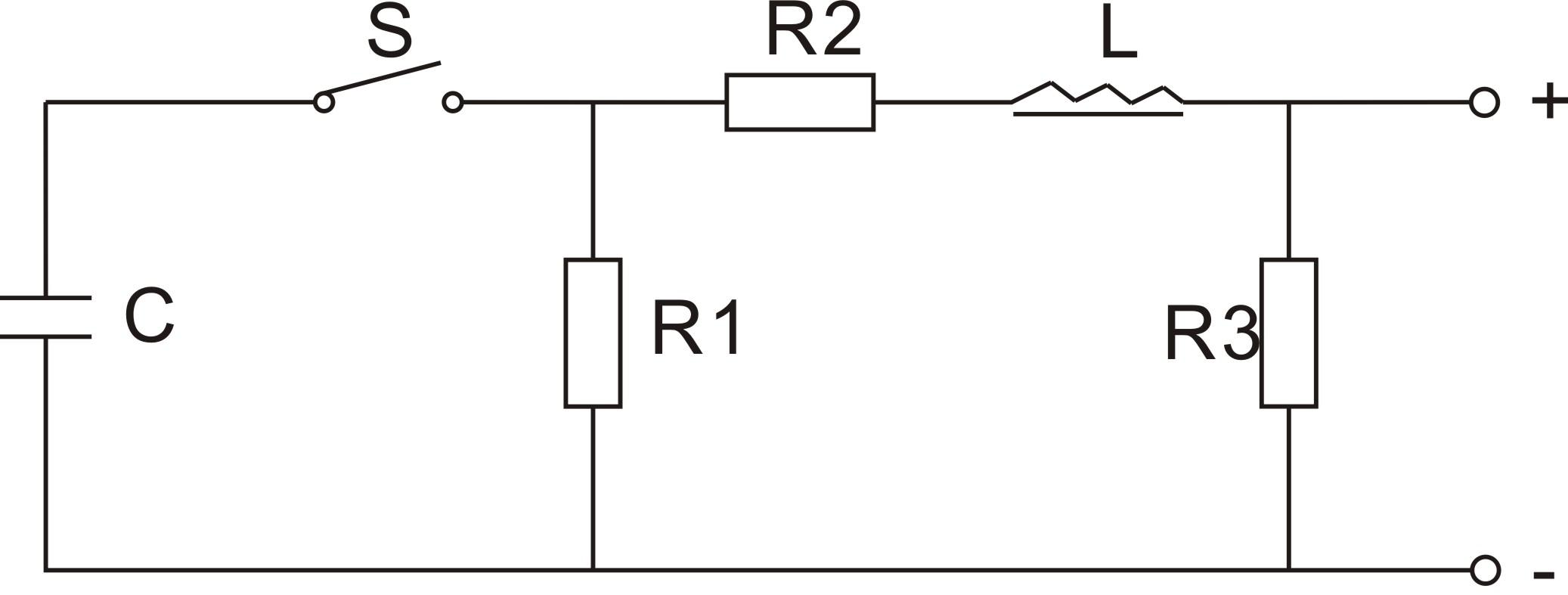

2. Circuit

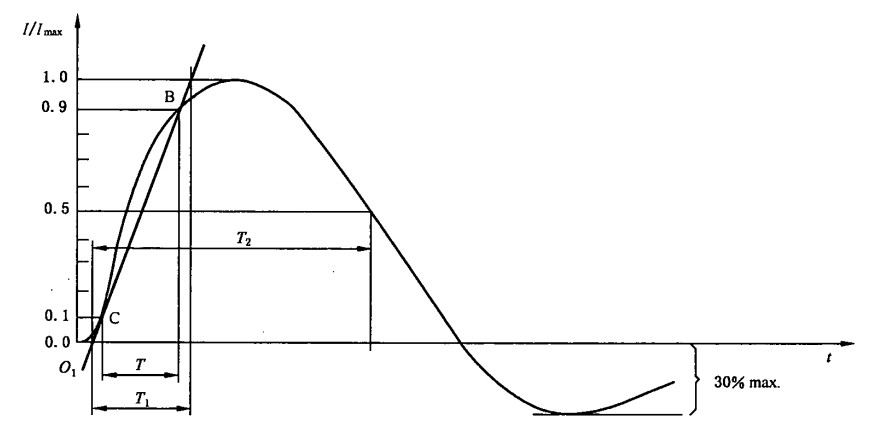

3.Output waveform definition

Leading edge time：T1=1.25T=2µS±20%

Half peak time：T2=10µS±20%





   8-20US Instructions for Portable Lightning Generator.pdf
