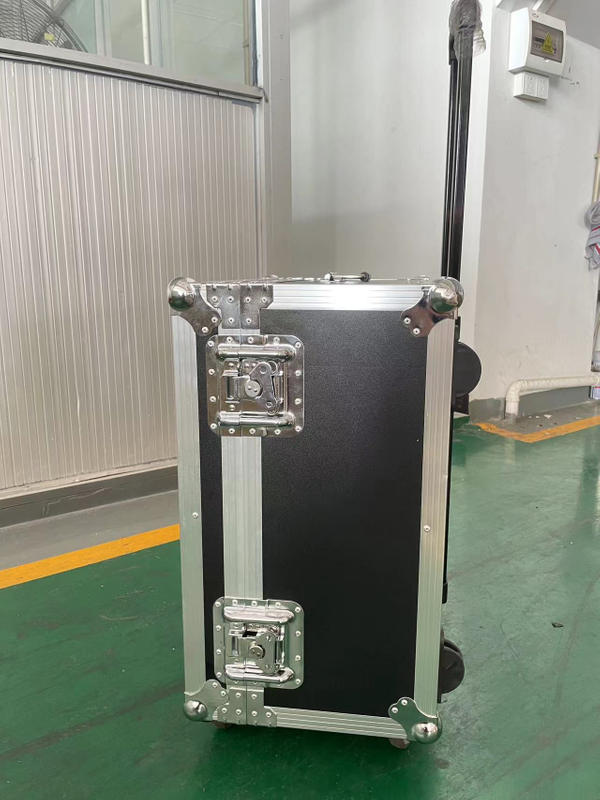

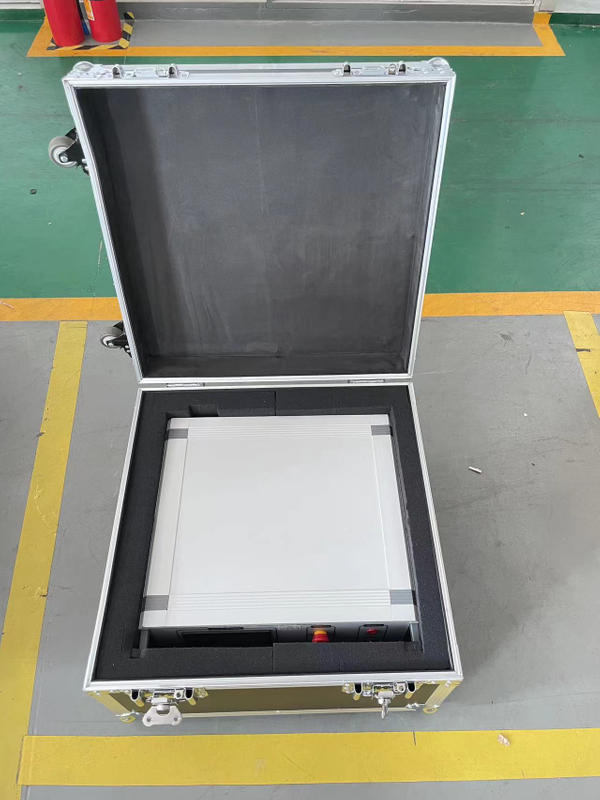

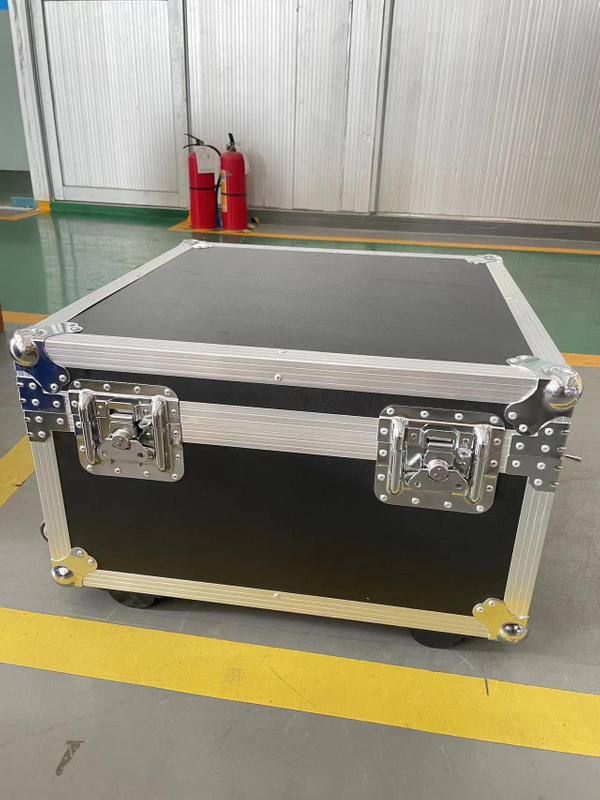

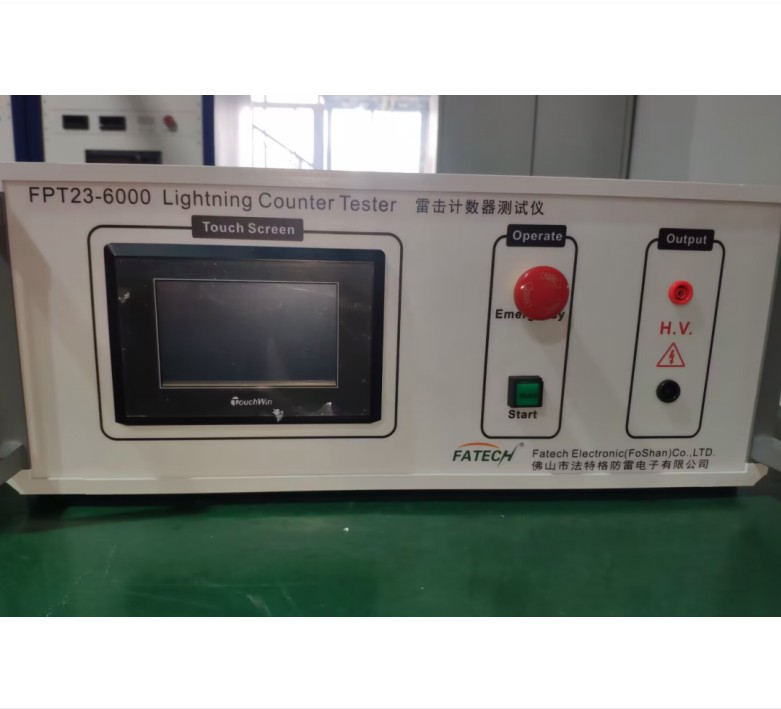

High Voltage Lightning Counter Tester Portable Surge Generator

FPT23-6000 Portable surge generator is designed for on-site testing of high-voltage lightning counters.

2/10 µ S lightning counter tester

Model No. : FPT23-6000


I. Technical data

Current waveform

2/10μS±20%（GB/T17626.5）

Output voltage

50V-6600V ±5%

Voltage polarity

Positive

Output impedance

0.2Ω（±0.05Ω）

Output short current

100A-3KA

Interval time

10-999

Number of discharge cycles

1-999

Working power supply

AC220V±10%,50/60HZ

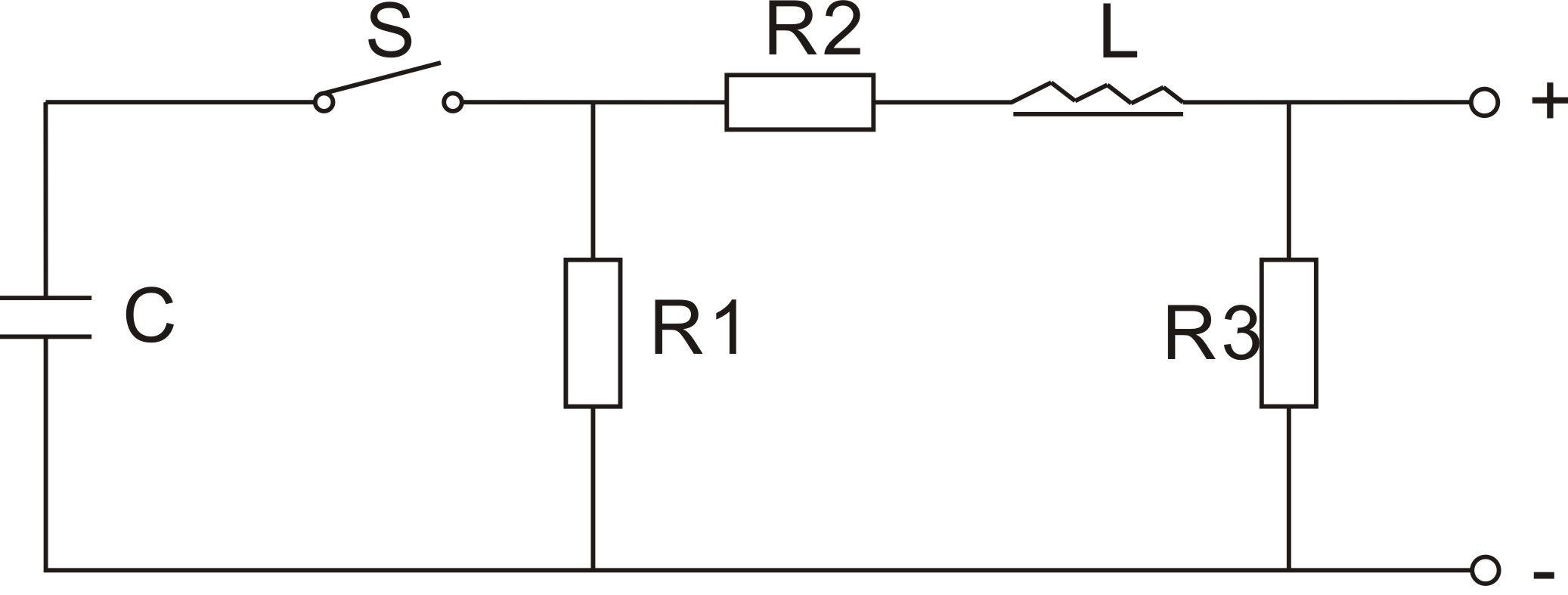

2. Circuit

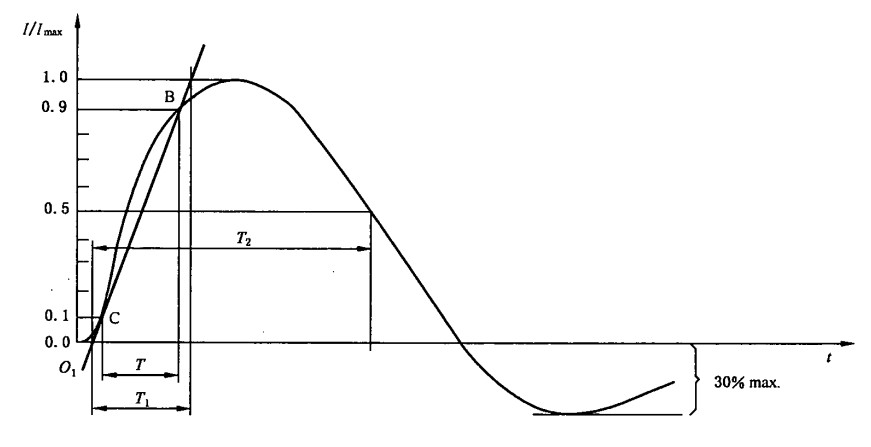

3.Output waveform definition

Leading edge time：T1=1.25T=2µS±20%

Half peak time：T2=10µS±20%







    2-10US Instructions for Lightning counter Tester.pdf
