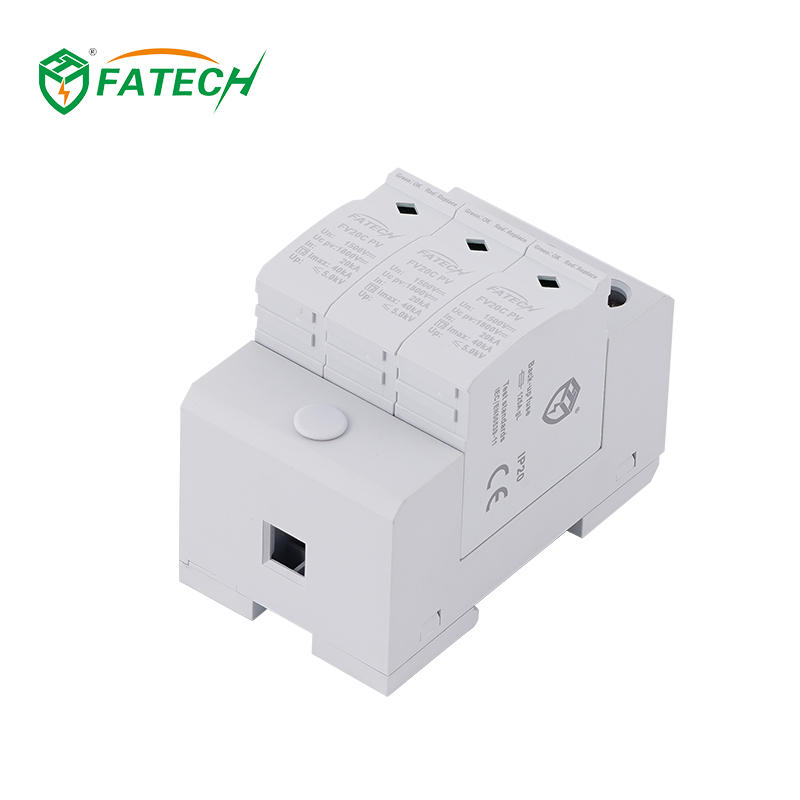

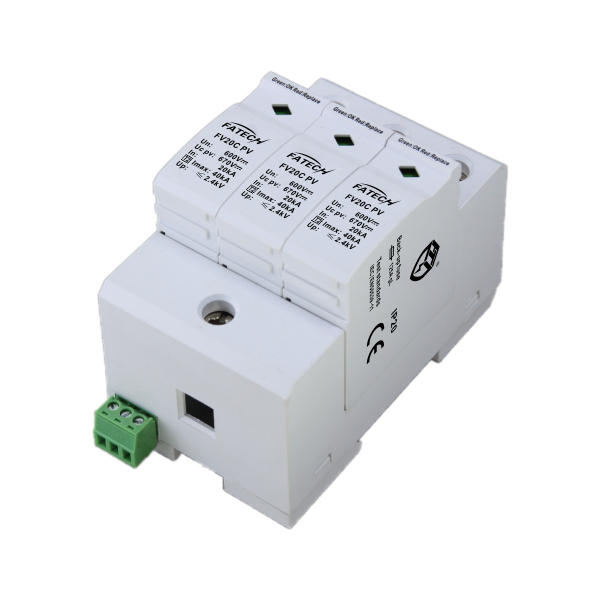

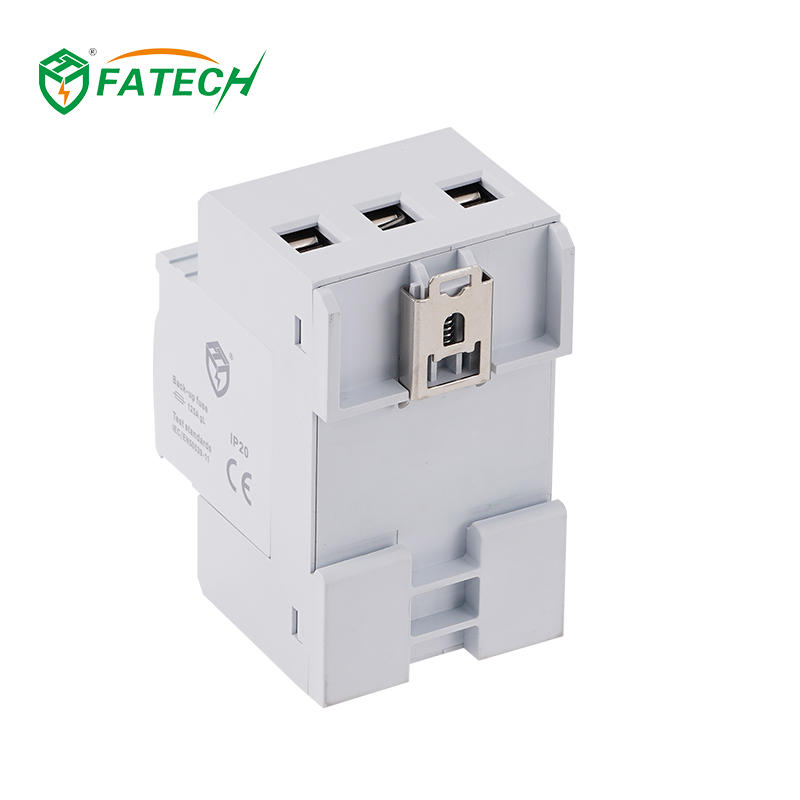

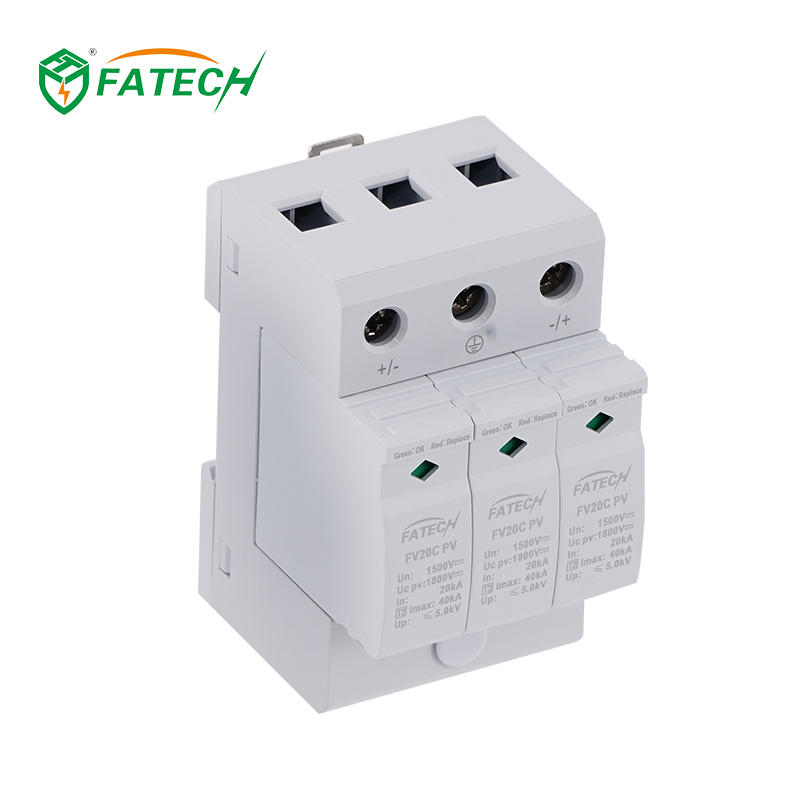

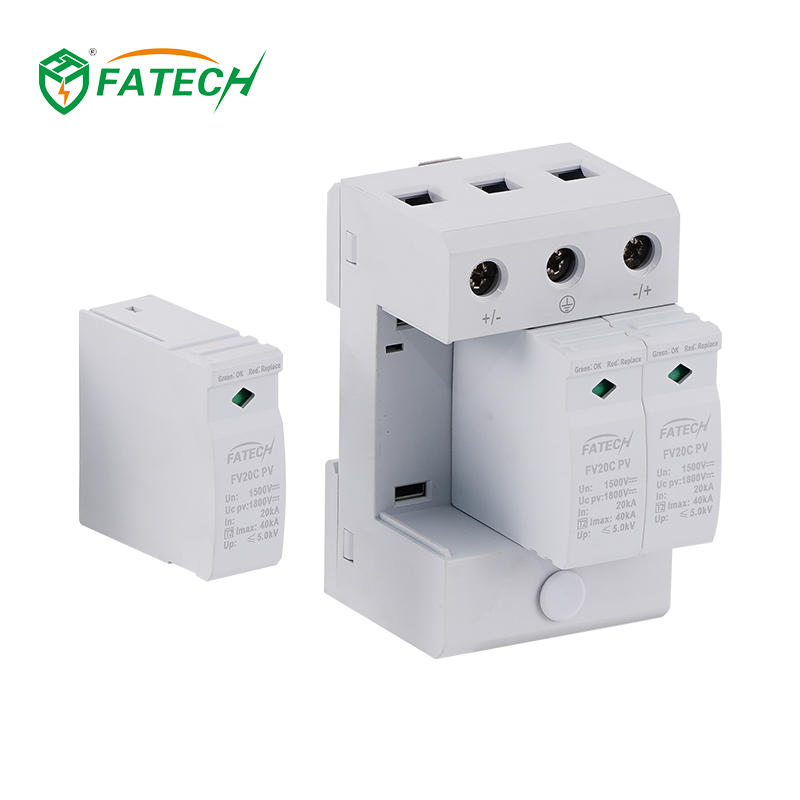

FV20C 3 1500PVS Y Type DC Surge Protector SPD

DC Surge protective device for PV system

Model No.: FV20C/3-1500PVS


• DC surge Protective device specially used for photovoltaic system less than 1500Vdc.

• The core parts are metal oxide vristor components with high discharge capacity.

• With reliable control thanks to Thermo Dynamic Control disconnector.

• With remote signaling contact for control device.

• Fault indication via red mark in the inspection window.

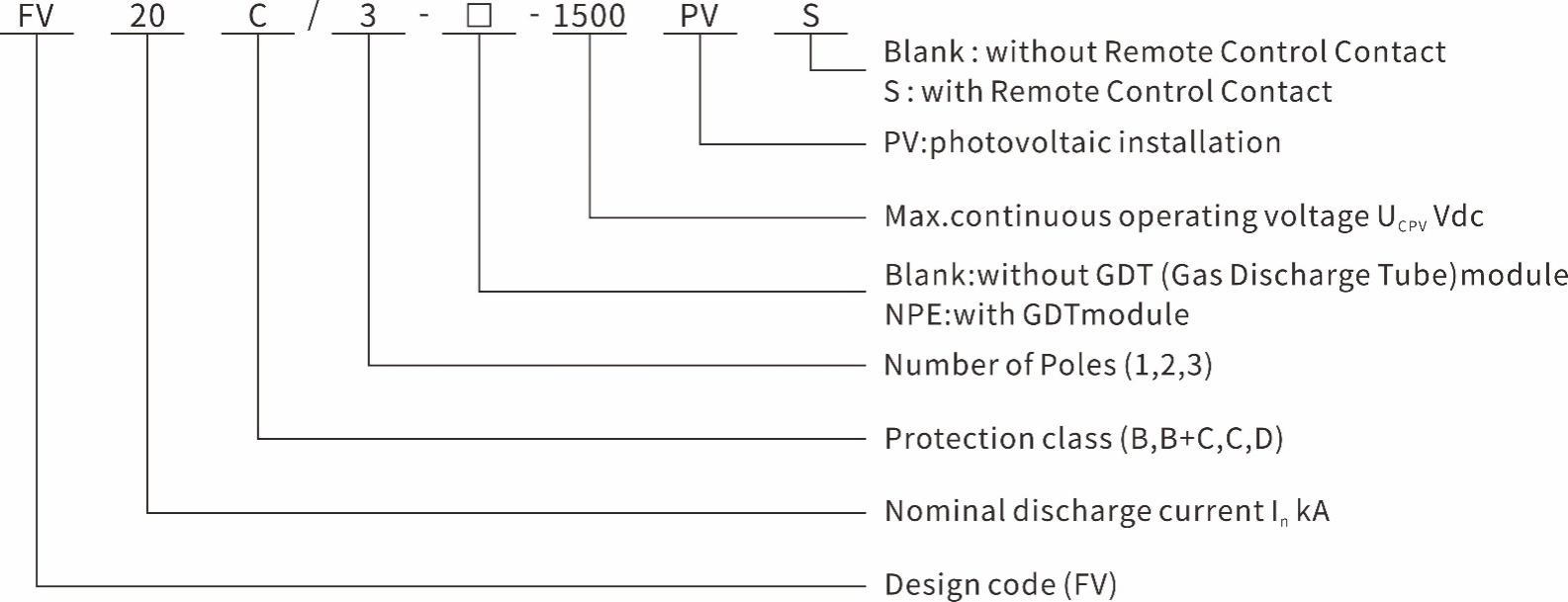

1.Coding

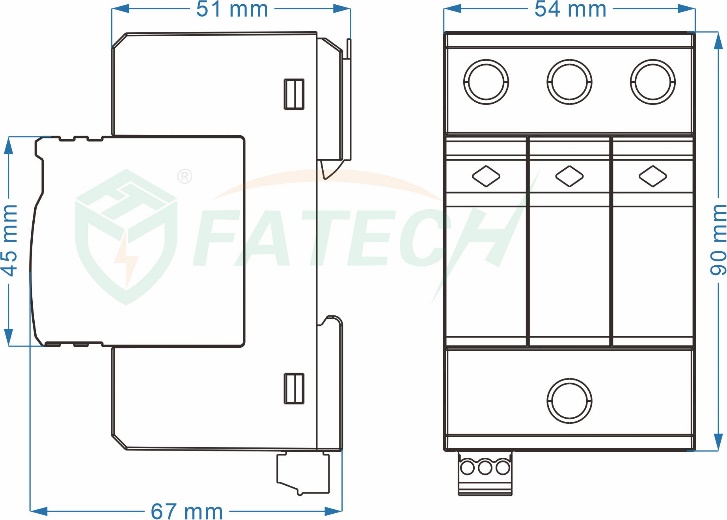

2. Dimension

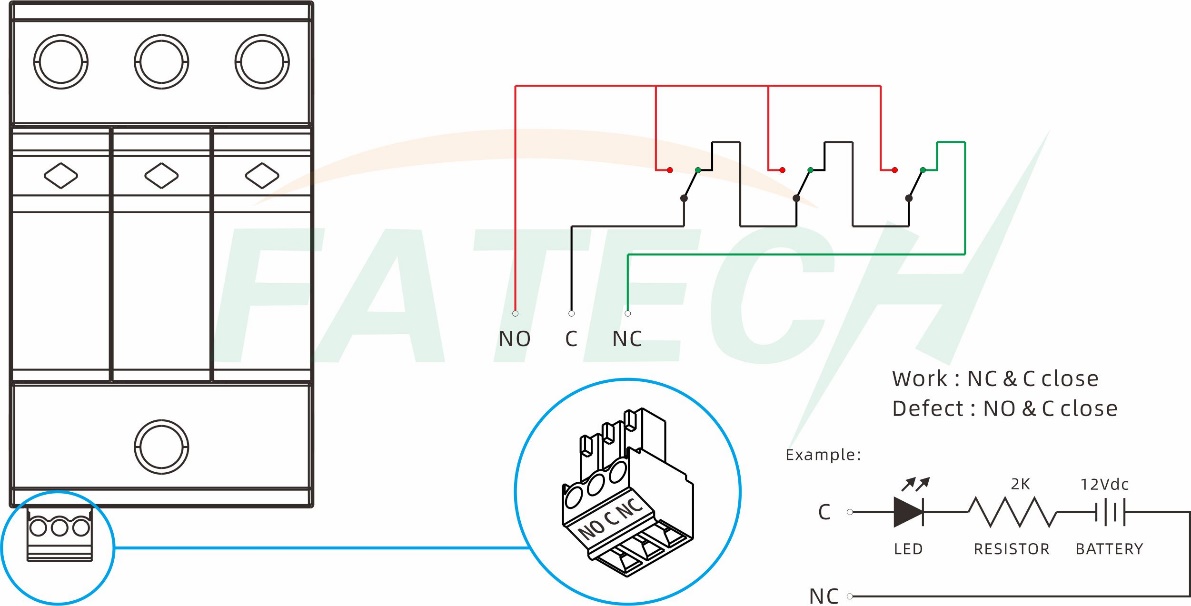

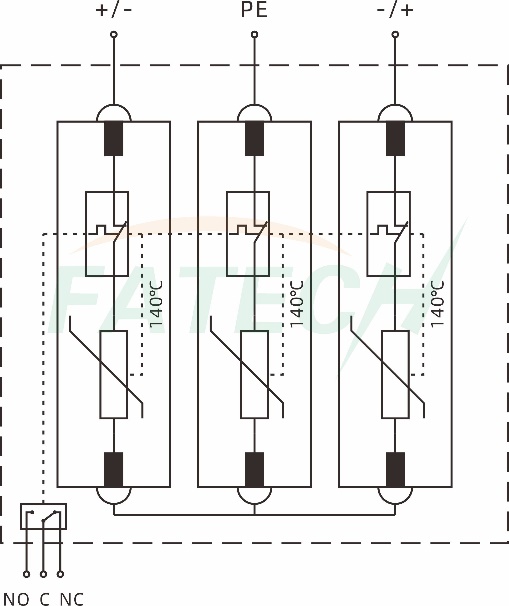

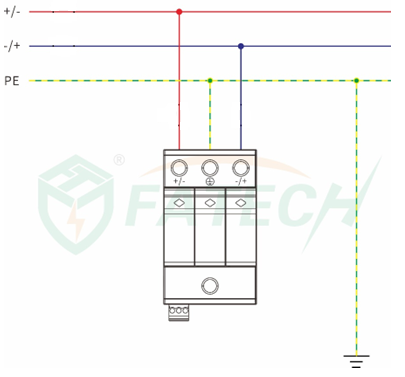

3. Circuit



4. Electrical parameters

Model. No.

FV20C/3-1500PVS

SPD protection conforms to EN50539-11/IEC61643-31

Type 2

SPD installation type conforms to EN50539-11/IEC61643-31

Class II

Protection level conforms to DIN VDE0675-6

C

Type of Network

Photovoltaic systems DC side

Protection mode

(+/-)-PE , (-/+)-PE , (+/-)-(-/+)

Nominal Voltage  Uocstc


1500 Vdc

Maximum continuous operating voltage for PV application UCPV

1600 Vdc

Continuous operating current ICPV

<20 uA

Residual current IPE

≤20 uA dc

≤500 uA ac

Standby power consumption PC

≤25 mVA

Maximum discharge current (8/20μs) Imax

40 kA

Nominal discharge current (8/20μs) In

20 kA

Short-circuit current rating Iscpv

10 kA

Voltage protection level Up

≤5.0 kV

Isolation resistance Risol

＞1000 MΩ

Response time tA

≤25 ns

Remote control contact

YES

Disconnection indicator

Mechanical indicator

(Green: OK, Red: Replace)

Minimum area of connecting cable

4 mm2

Maximum area of connecting cable

25 mm2

Installation location

Inside

Mounting type

35mm DIN rail acc. to EN 60715

Color

Gray

Degree of protection

IP20

Housing material

UL94V-0

Ambient temperature

-40°C ~+80°C

Altitude

≤2000 m (amsl (above mean sea level))

Permissible humidity

30%~90%


5. Installation




    Fatech Specification FV20C 3 1500PVS LL18S 20191121.pdf
