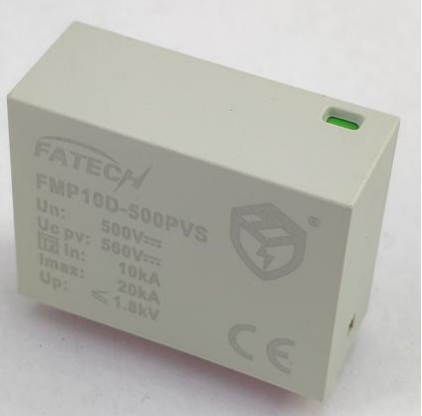

PCB Mounting 500V DC Surge Protector

1.Power Lightning Protection Module specially used forphotovoltaic system less than 500vdc.
2.The core parts are metal oxide vristor components withhigh discharge capacity.
3.With reliable control thanks to Thermo Dynamic controldisconnector.
4.With remote signaling contact for control device.
5.Fault indication via red mark in the inspection window.

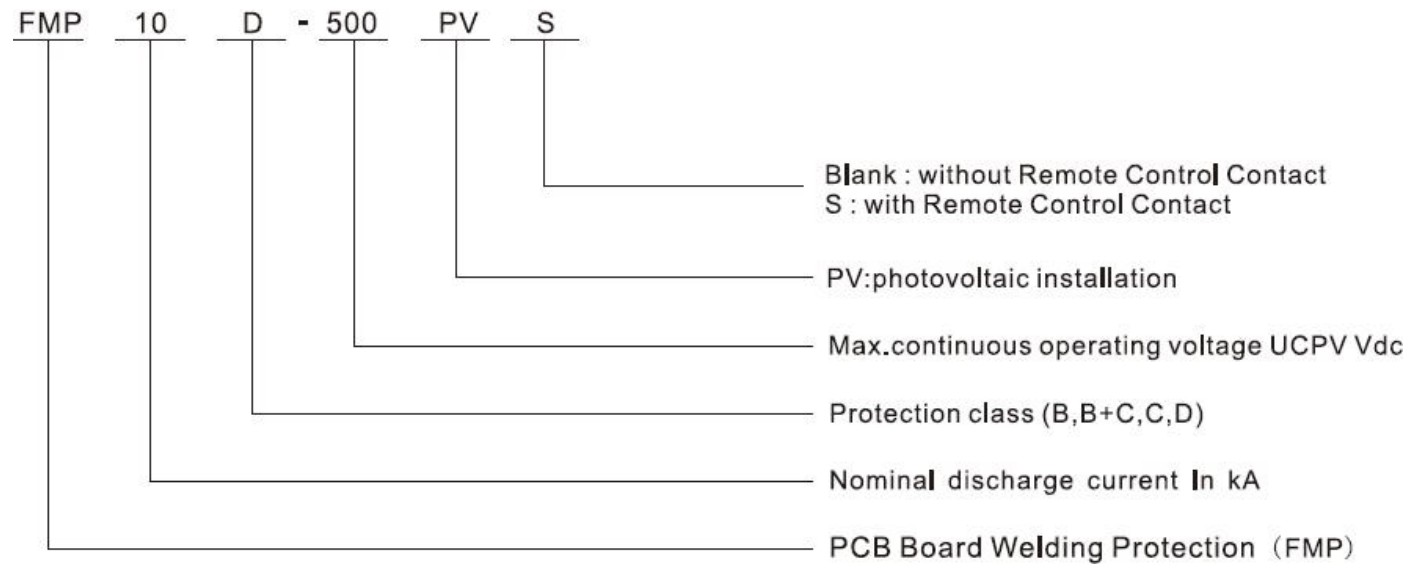

1.Coding

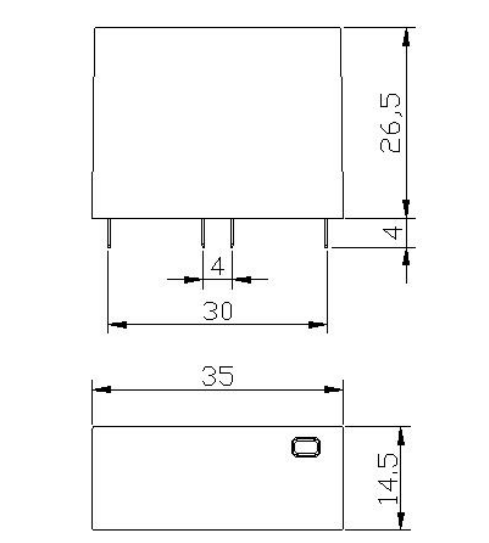

2. Dimension

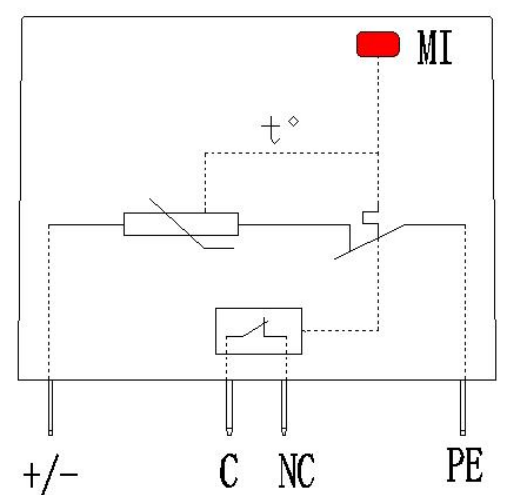

3. & Circuit




4. Electrical parameters


Model. No.

FMP10D-500PVS

SPD protection conforms to EN50539-11/IEC61643-31

Type 3

SPD installation type conforms to EN50539-11/IEC61643-31

Class III

Protection level conforms to DIN VDE0675-6

D

Type of Network

Photovoltaic systems DC side

Protection mode

(+/-) -(-/+) ,(+/-)-PE, (-/+)-PE

Nominal Voltage   UN

500 Vdc

Maximum continuous operating voltage for PV application   UCPV

560 Vdc

Continuous operating current   ICPV

<20 µA

Standby power consumption   PC

≤25 mVA

Maximum discharge current (8/20μs)   Imax

20 kA

Nominal discharge current (8/20μs)   In

10 kA

Voltage protection level   Up

≤1.8 kV

Open circuit voltage  Uoc

20 kV

DC short circuit breaking capacity

50A/800VDC

Rated short-circuit current for photovoltaic applications - Iscpv

50A

Isolation resistance   Risol

＞1000 MΩ

Response time   tA

≤25 ns

Remote control contact

YES

Disconnection indicator

Mechanical indicator

(Green: OK, Red: Replace)

Alarm device

Normally closed during normal time, often open when abnormal

Installation location

Inside

Mounting type

PCB Board Welding

Color

Gray

Housing material

UL94V-0

Ambient temperature

-40°C ~+80°C

Altitude

≤2000 m (amsl (above mean sea level))

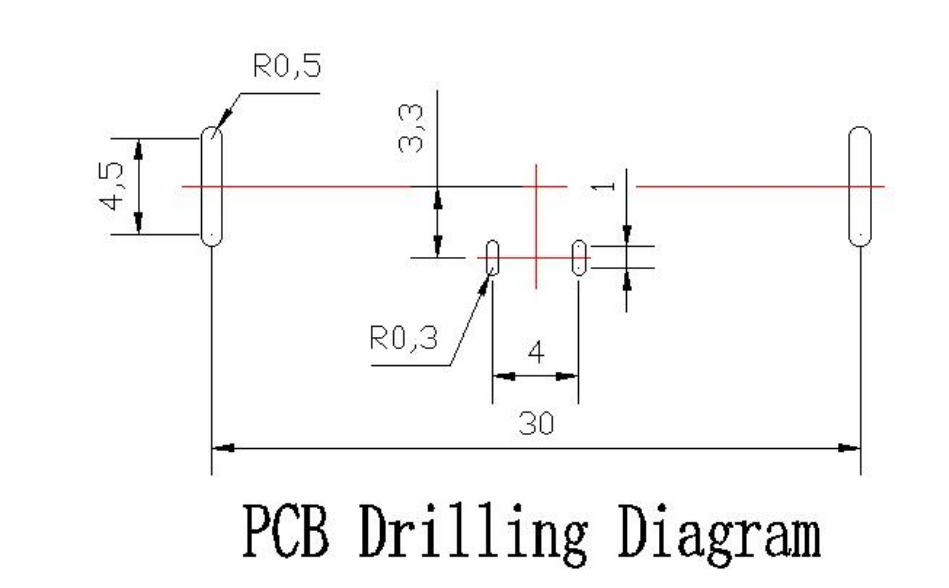

5. Installation

   Fatech Specification FMP10D 500PVS 20230520.pdf
