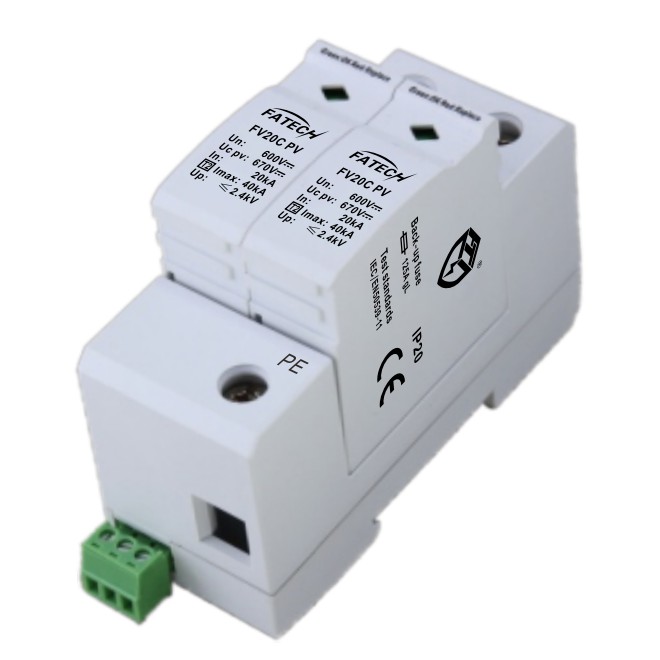

2P Type 2 DC Surge Protector for PV System
* DC surge protective device used for photovoltaicsystem.
* The core parts are metal oxide vristor components
with high discharge capacity.
* With Reliable control thanks to Thermo DynamicControl disconnector.
* Remote signaling contact for control device optional
* Fault indication via red mark in the inspectionwindow.
* Type 2/ Class C.
* 2 poles,u type.
DC Surge protective device for PV system
Model No.: FV20C/2-xxx PVS
• DC surge Protective device specially used for photovoltaic system.
• The core parts are metal oxide vristor components with high discharge capacity.
• With reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.

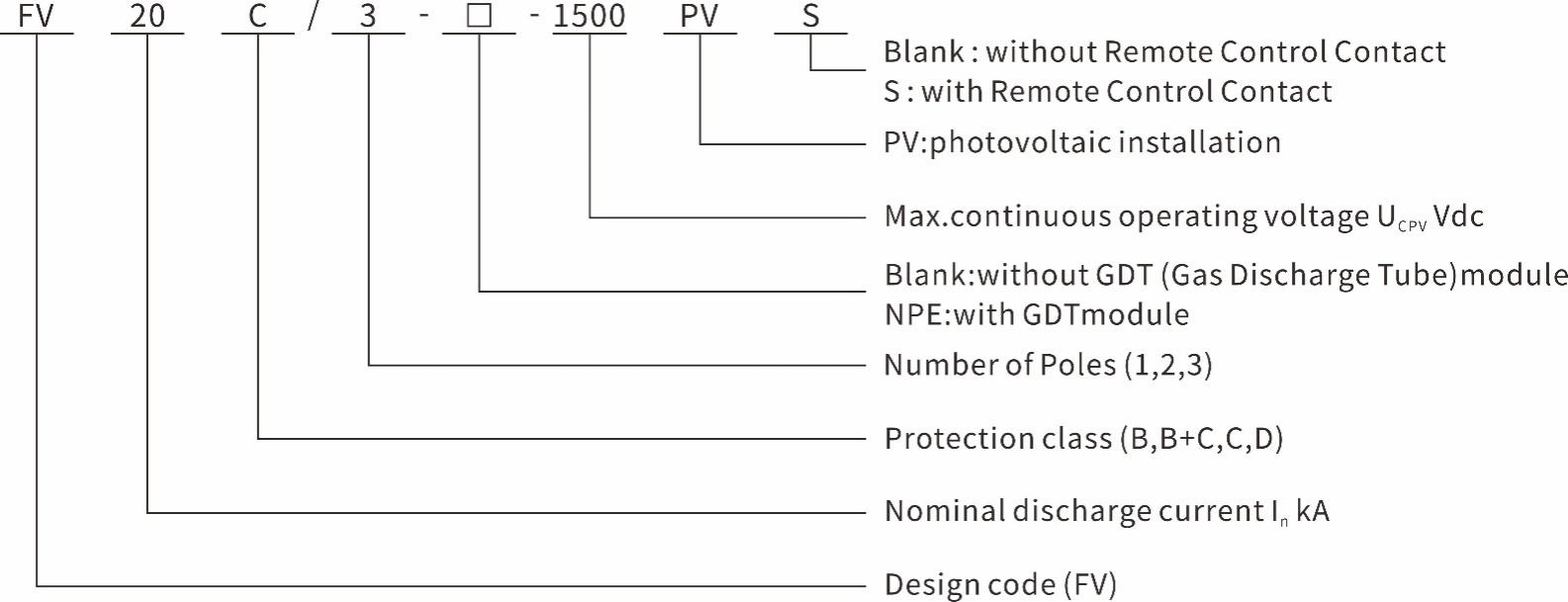

1.Coding

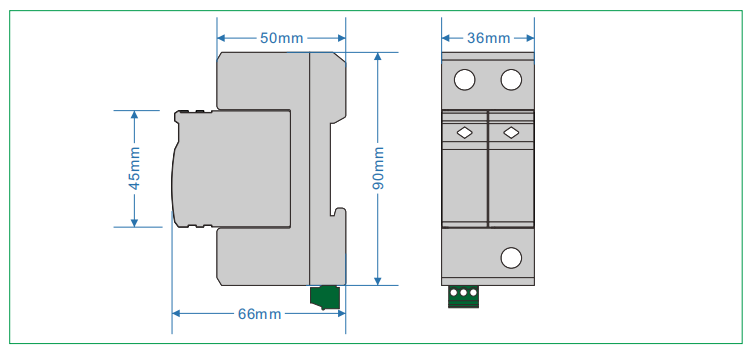

2. Dimension

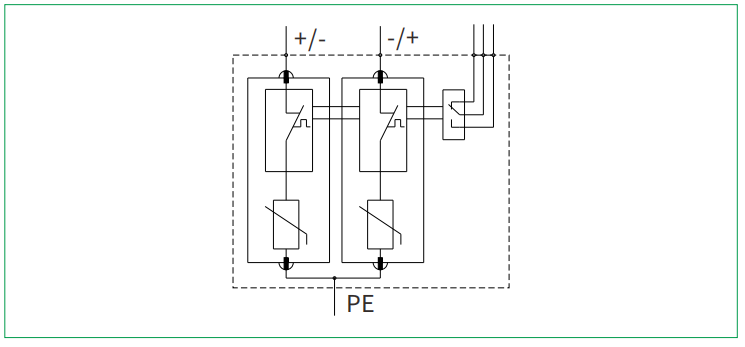

3. Circuit

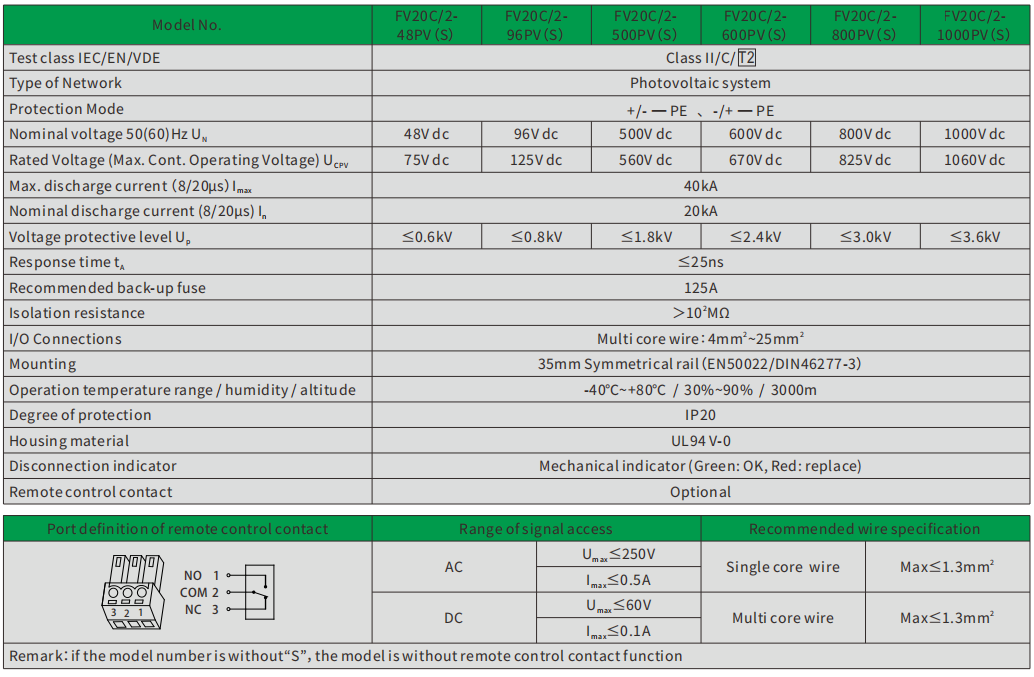

4. Electrical parameters

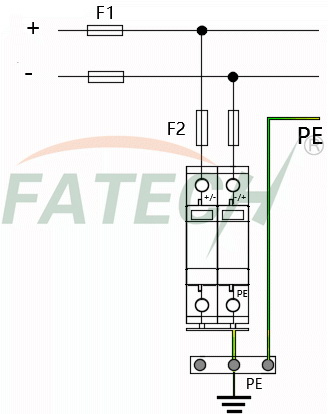

5. Installation
