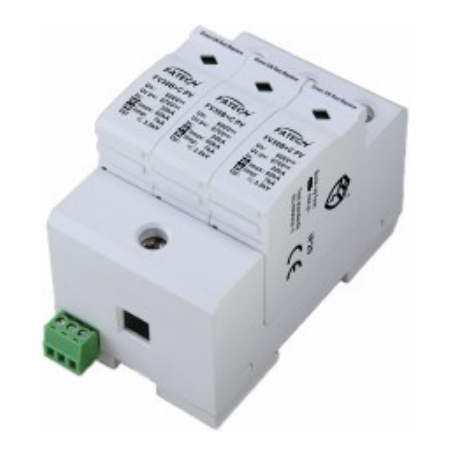

Type 1+2 1000V DC Surge Protector
* DC surge protective device used for photovoltaicsystem.
* The core parts are metal oxide vristor components with high discharge capacity.
* With Reliable control thanks to Thermo DynamicControl disconnector.

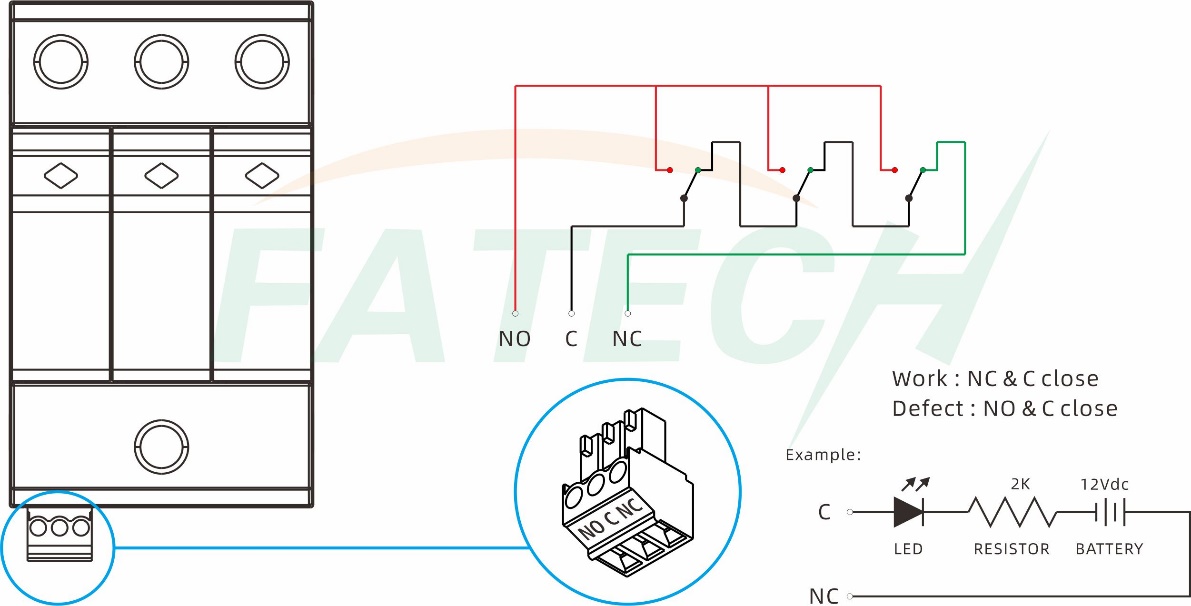

* Remote signaling contact for control device optional.
* Fault indication via red mark in the inspectionwindow.
* 3 poles, y type.
DC Surge protective device for PV system
Model No.: FV30B+C/3-1000 PVS
• DC surge Protective device specially used for photovoltaic system less than 1000Vdc.
• The core parts are metal oxide vristor components with high discharge capacity.
• With reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
1.Coding

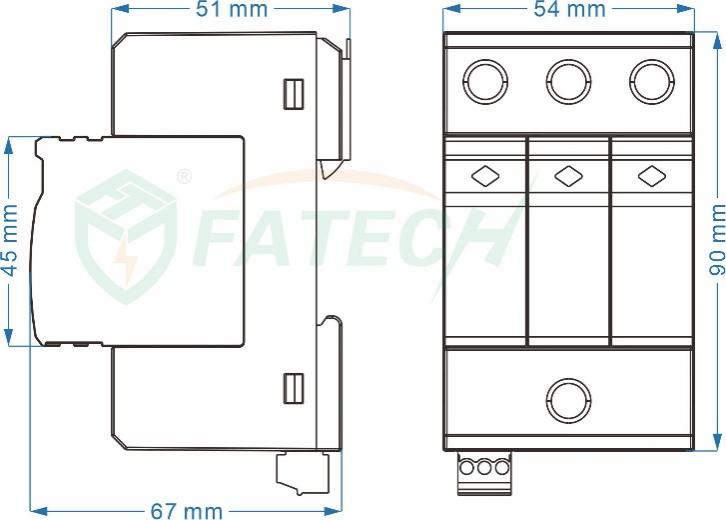

2. Dimension

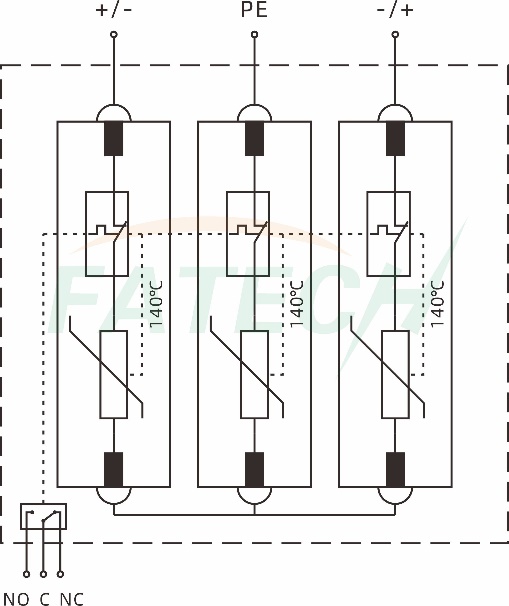

3. Circuit

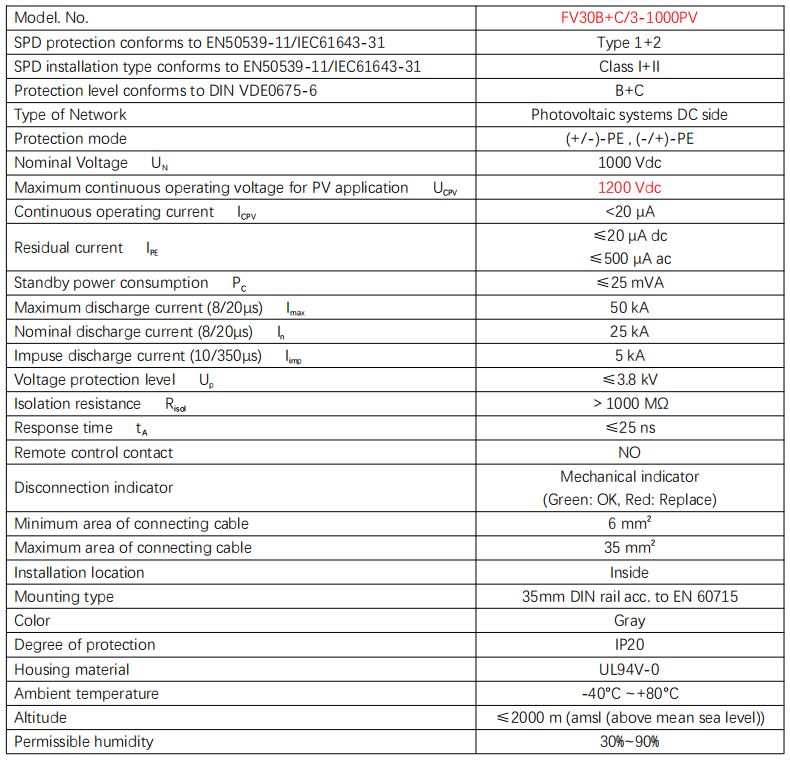

4. Electrical parameters

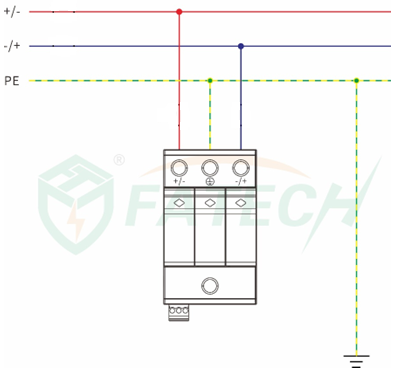

5. Installation
