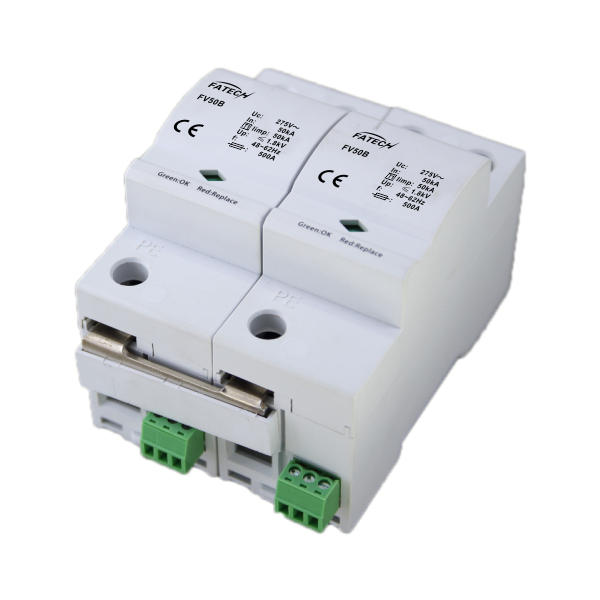

Type 1 Iimp 50kA Single Phase Surge Arrester
AC Surge Arrester for low-voltage distribution system
Model No.: FV50B/2-XXX S
• Class I/ Type 1 surge arrester.
• For using in the lightning protection zones concept at boundary 0-1.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L-PE,N-PE

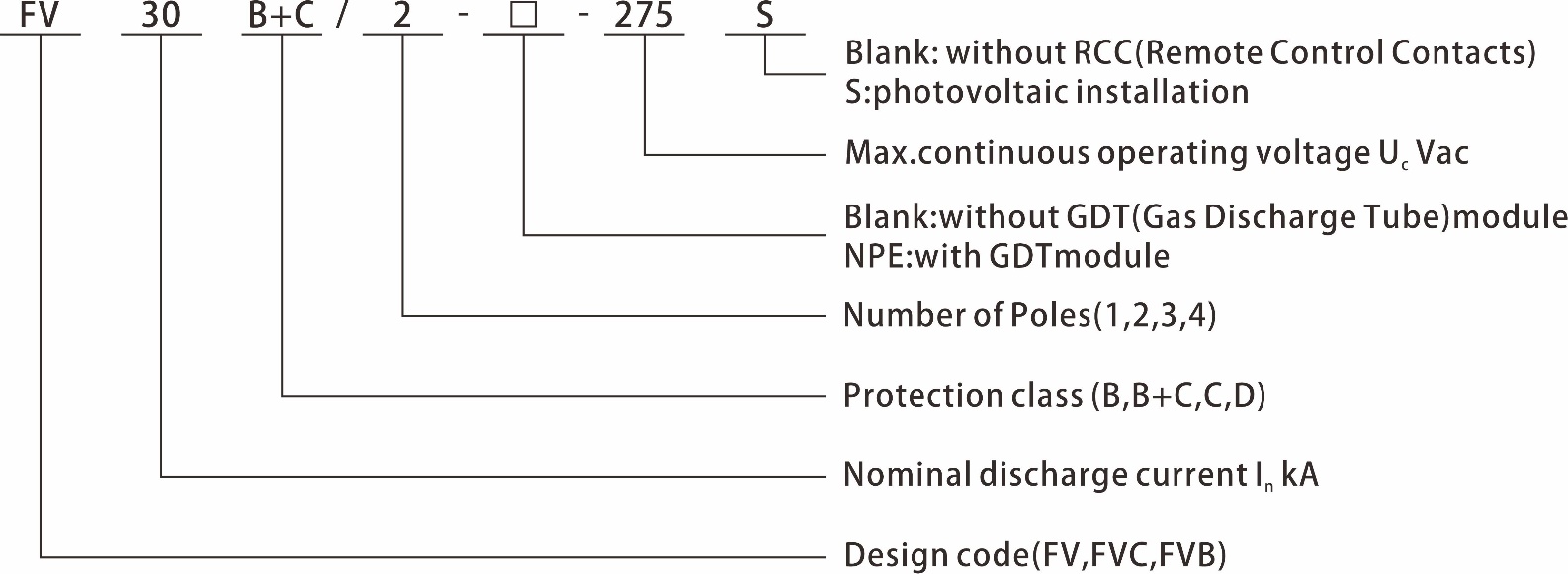

1.Coding

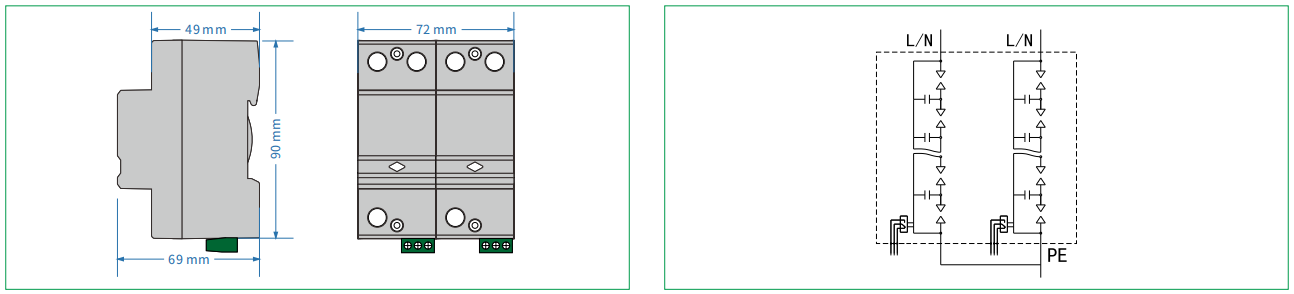

2. Dimension & Circuit

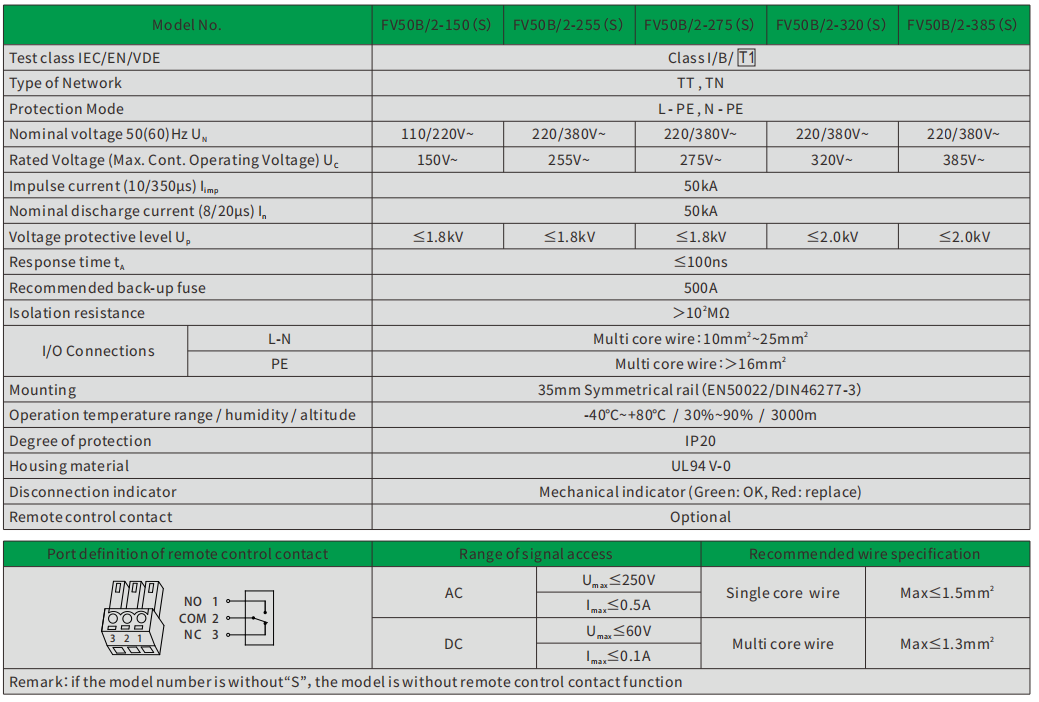

3. Electrical parameters

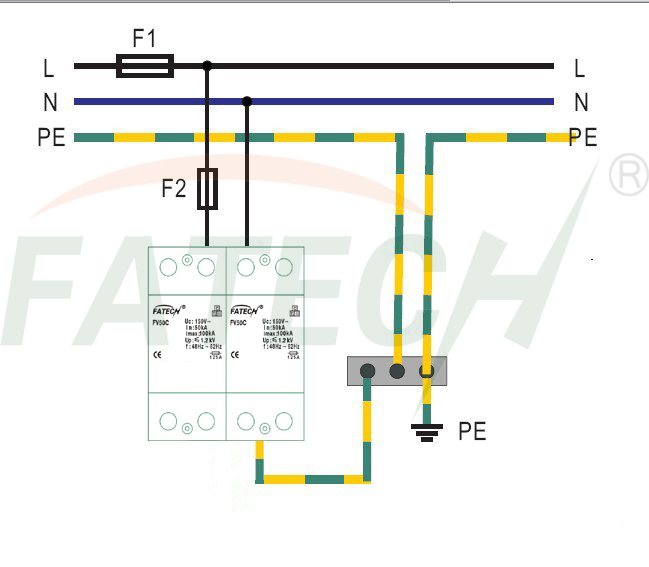

4. Installation
Previous : Type 1 Iimp 50kA 3 Poles Surge Protection Device
Next : Type 1 Iimp 50kA 1 Pole Surge Protector
