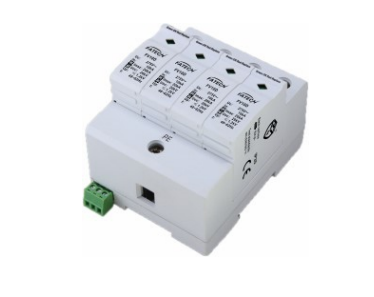

20kA 3 Phase Surge Protector
AC Surge protective device for low-voltage distribution system
Model No.: FV10D/4-XXX S
• Class II / Type 2 surge protective devices.
• For using in the lightning protection zones concept at boundary 1-2.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.

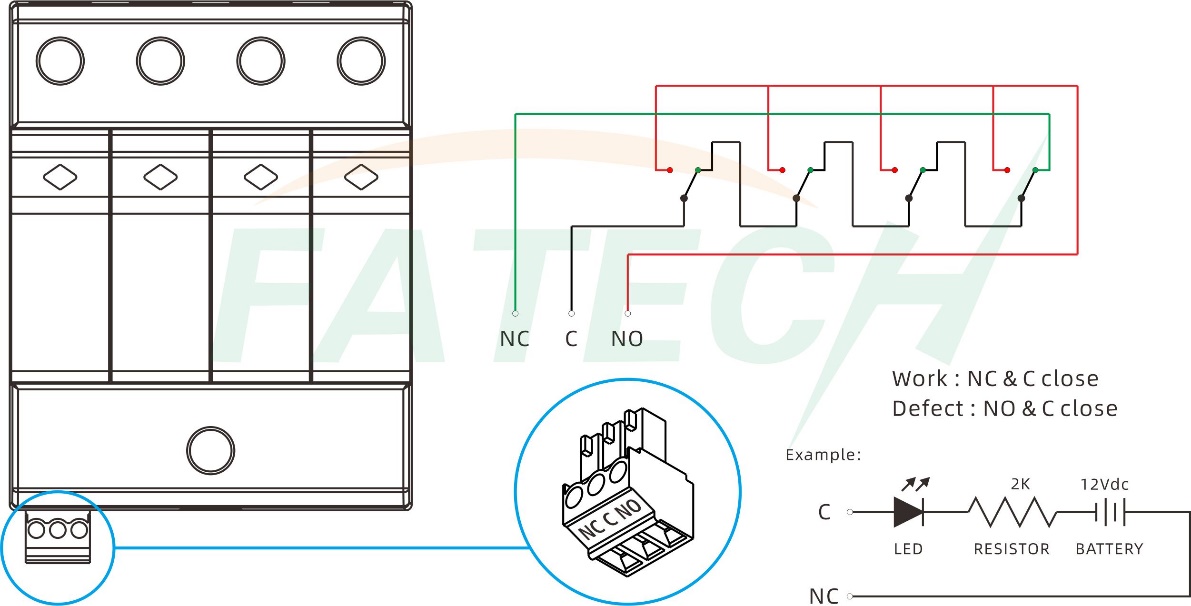

• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L1,L2,L3,N-PE

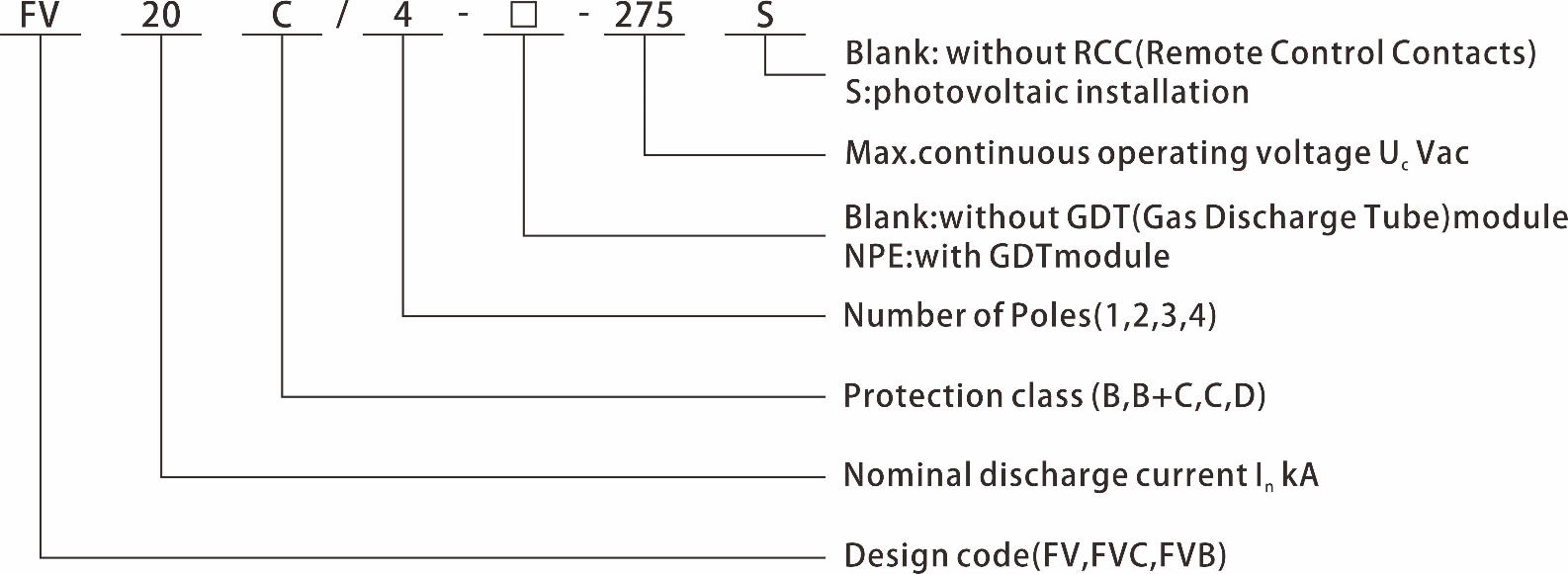

1.Coding

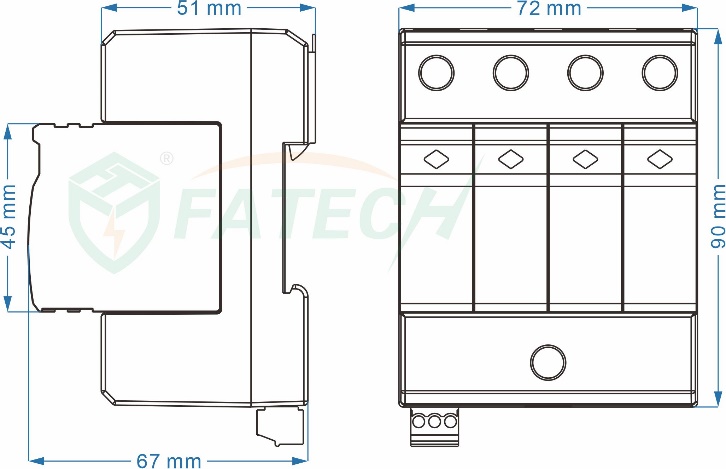

2. Dimension

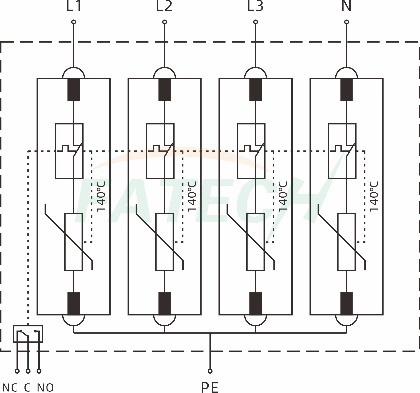

3. Circuit

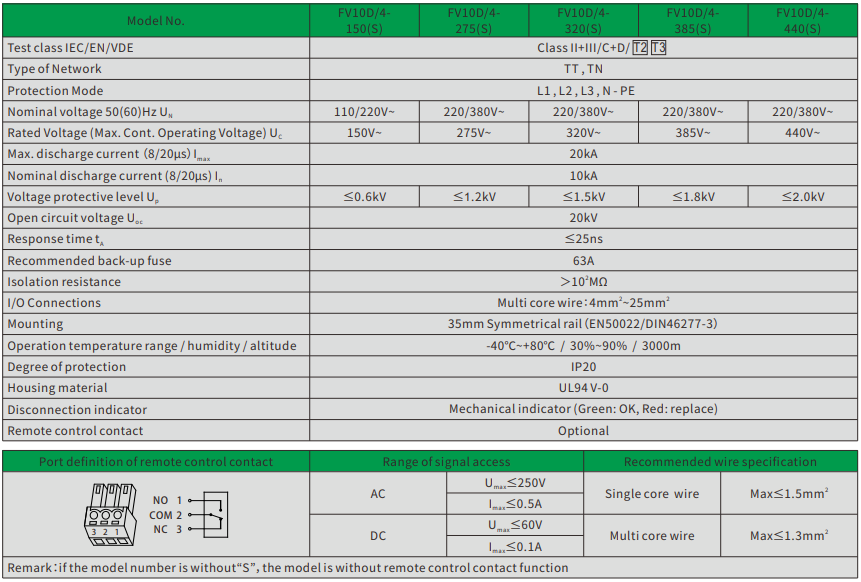

4. Electrical parameters

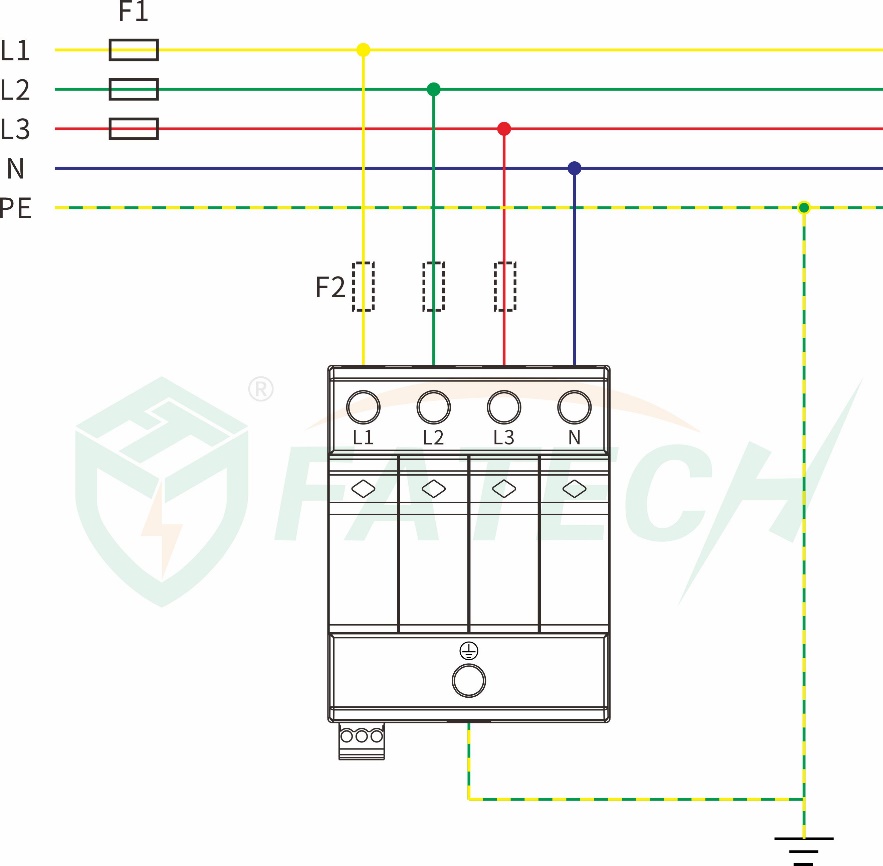

5. Installation
