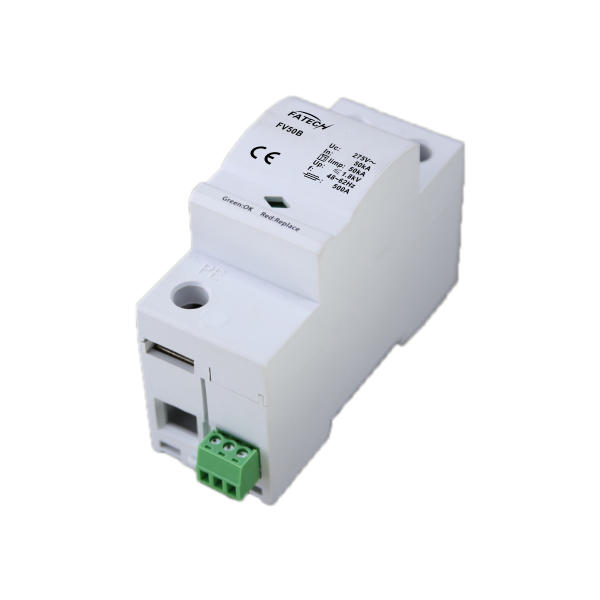

Type 1 Iimp 50kA 1 Pole Surge Protector
AC Surge Protector for low-voltage distribution system
Model No.: FV50B/1-XXX S
• Class I/ Type 1 surge protector.
• For using in the lightning protection zones concept at boundary 0-1.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L/N-PE

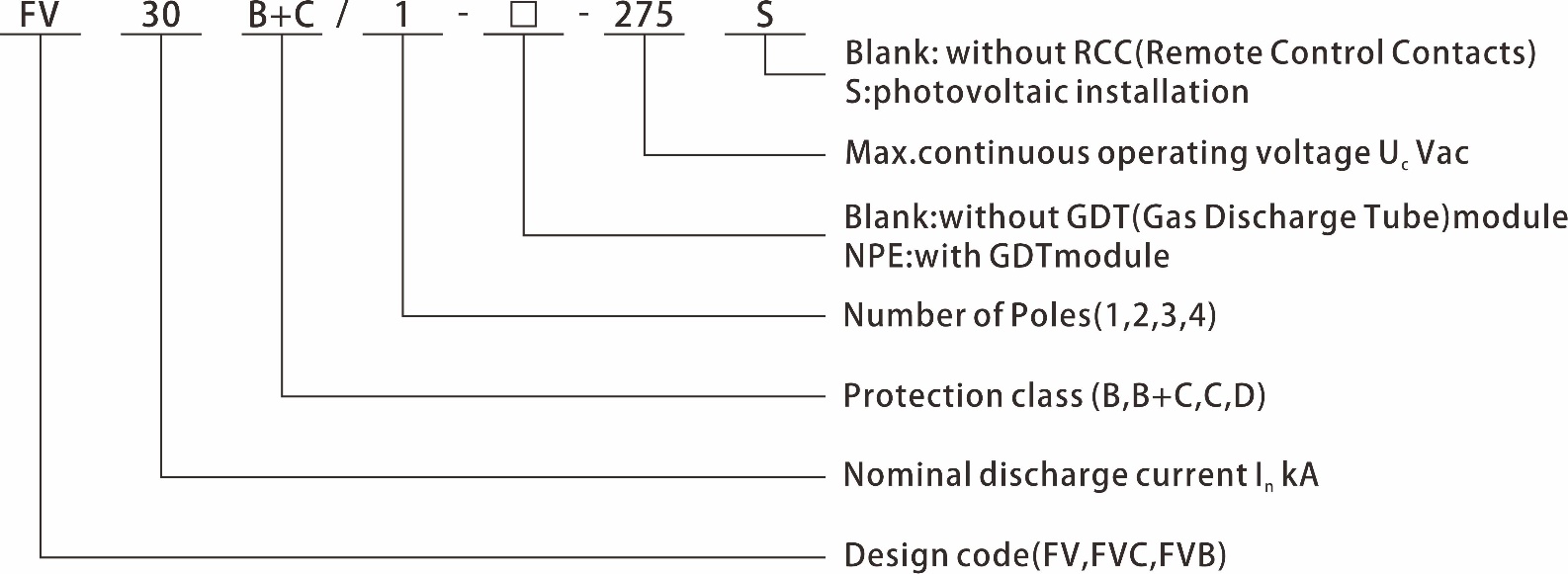

1.Coding

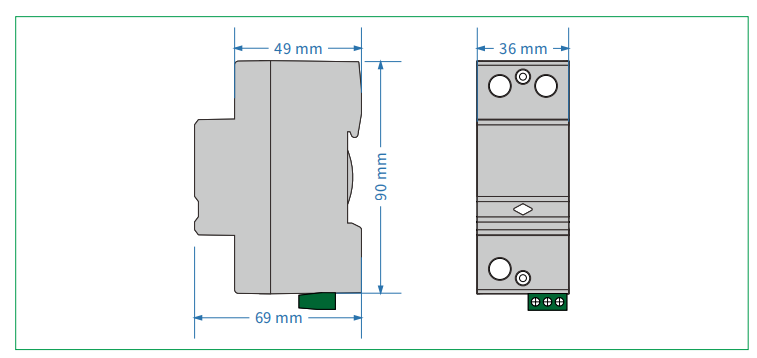

2. Dimension

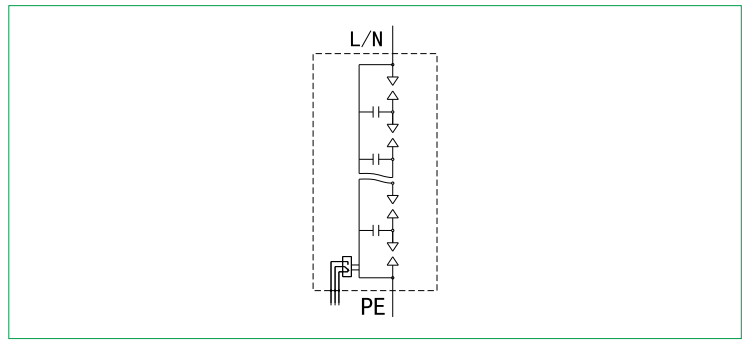

3. Circuit

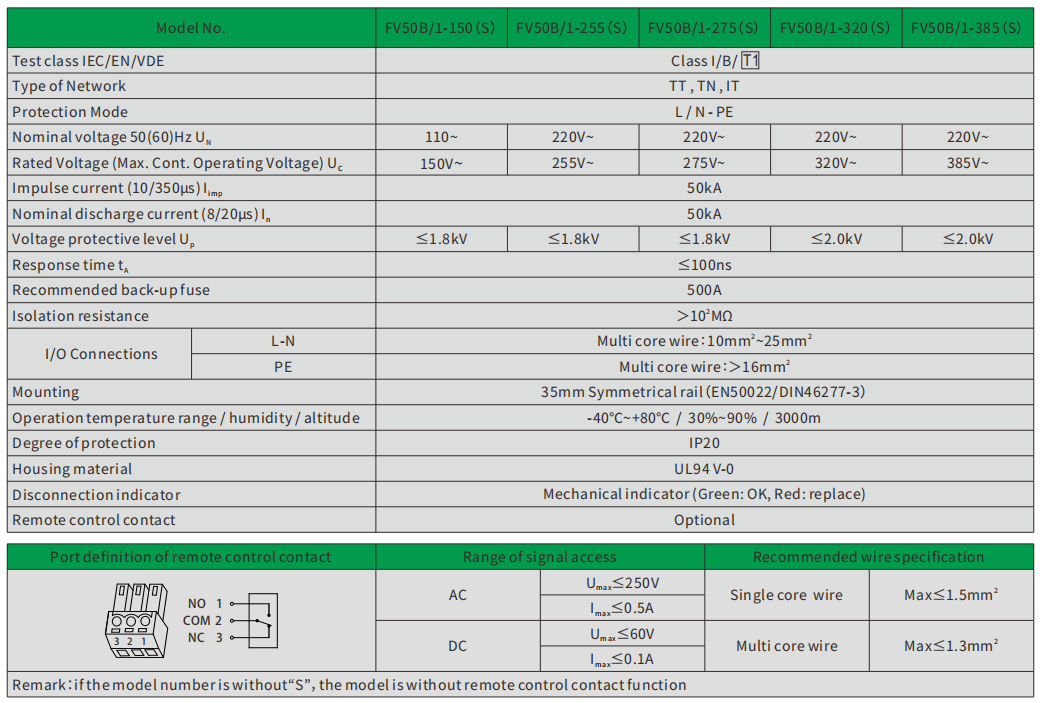

4. Electrical parameters

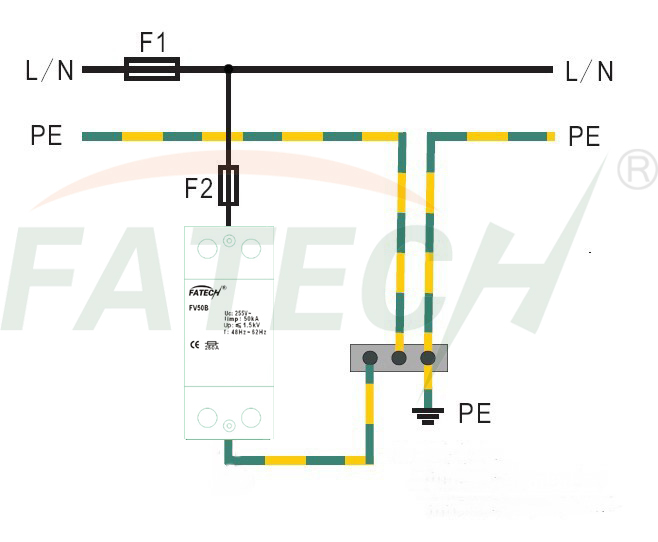

5. Installation
Previous : Type 1 Iimp 50kA Single Phase Surge Arrester
Next : Type 1 Iimp 25kA 3 Phase Surge Protection Device
