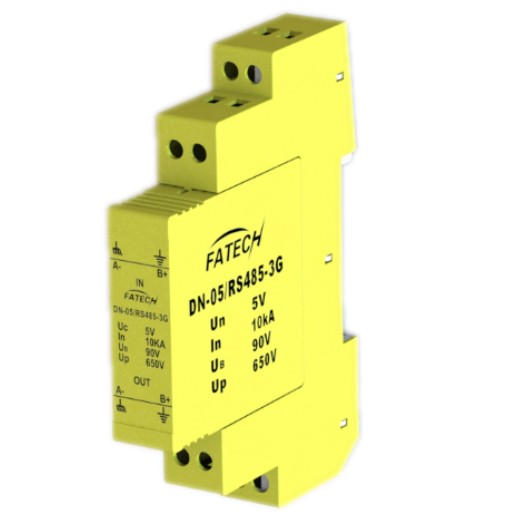

Din Rail 20kA Data Line Signal Surge Protector

Surge protective devices with plug-in protection modules for high-frequency signal transmission systems against surges at the boundaries from lightning protection zone 0B>2.

Surge protective device for signal transmission system                    Version: B-3

Model No.: FS-DN-24-RS485-3G


1. Surge protective devices with plug-in protection modules for high-frequency signal transmission systems against surges at the boundaries from lightning protection zone 0B>2.

2. Data network protector in according with IEC61643-21.

3. Two parts design, surge protection modules to be exchanged easily.

4. Limit the transients with gas discharge tubes.

5. Two-stage protection circuit.

6. 35mm DIN-rail mounting design

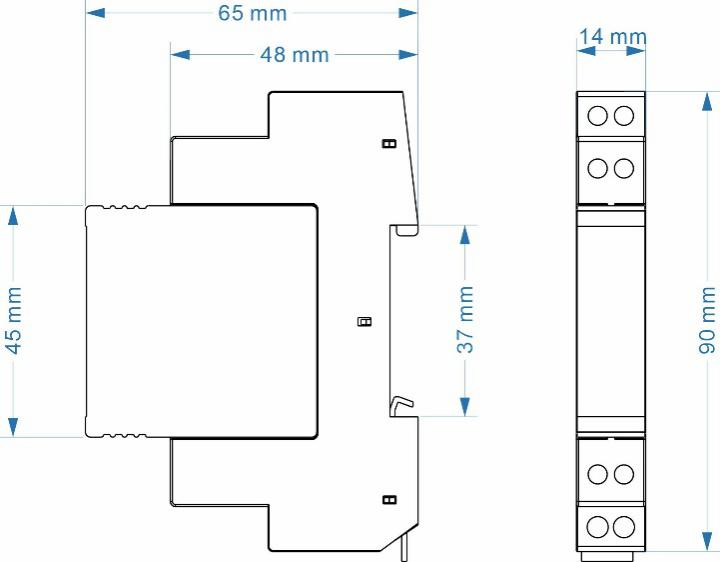

1. Dimension

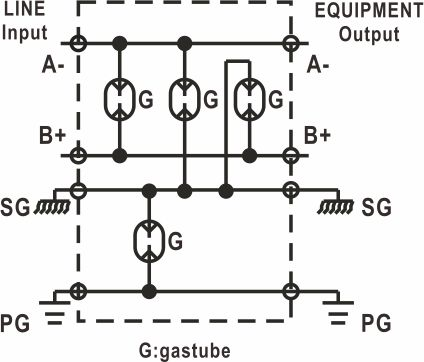

2. Circuit





3. Electrical parameter


Model. No.

FS-DN-05/xxxx-3G

Appliance

xxxx:RS232,RS422,RS423,RS485,0/4-20mA,0-5V,0-10V

Configuration

twisted pair + shield

Nominal line voltage (Un)

24 V

Max line voltage

26.8 V

Nominal Discharge Current (8/20μs,KA) In 10 times

10 kA

Total Max. Discharge Current (8/20μs,KA) Imax 1 time

20 kA

Impulse current (limp) (10/350us KA) impulse 2 times

5 kA

Nominal Current (A)  IL

1 A

Breakdown Voltage

90V(L-L);90V(L-SG);230V(SG-PG)

Protection level (Up) at 1kV/uS

650V(L-L);650V(L-SG);700V(SG-PG)

Series impedance per line (Ohm)

0 Ohm

Insertion loss at 10MHz (dB)

≤0.3

Degree of protection

IP20

Mounting on

35 mm DIN-rail

Enclosure Material

UL94 V0

Environment Temperature (℃)

- 40~+80

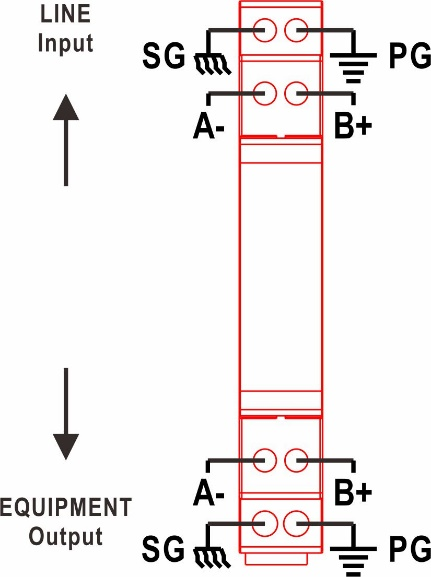

4. Installation




   Fatech Specification DN 24 RS485 3G 20230321.pdf
