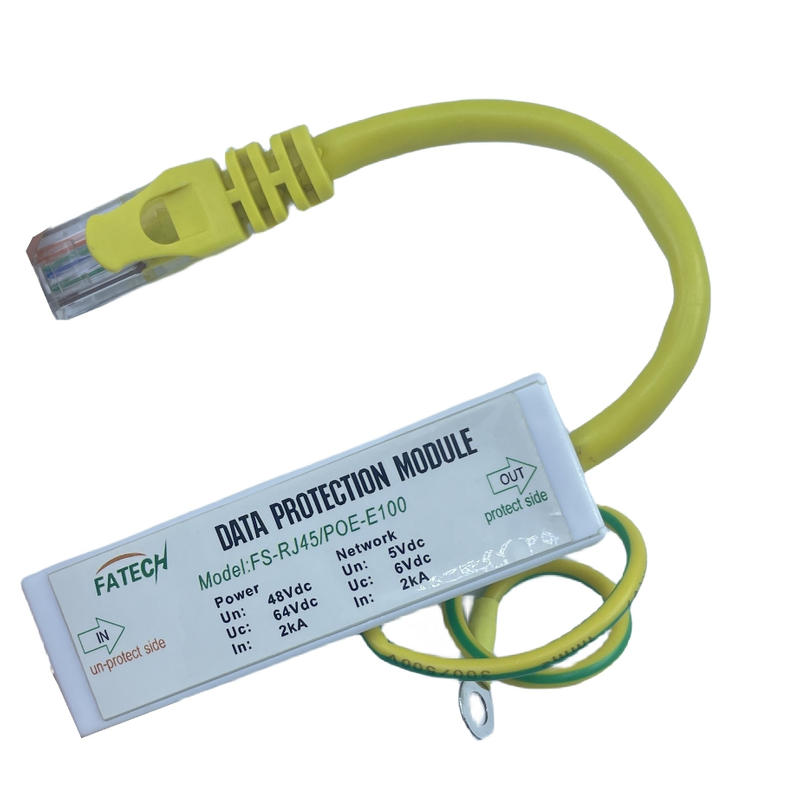

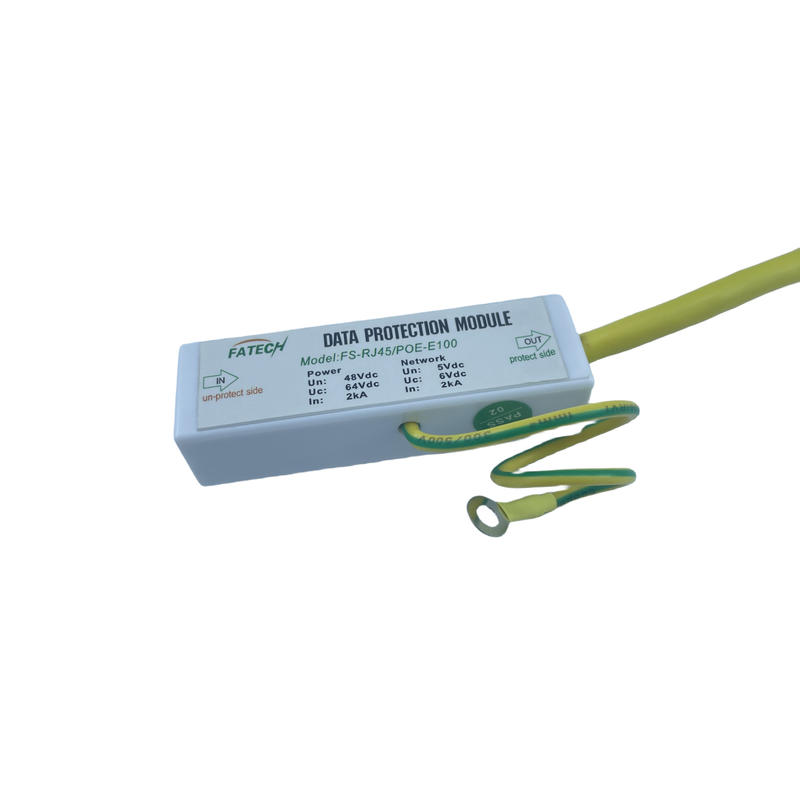

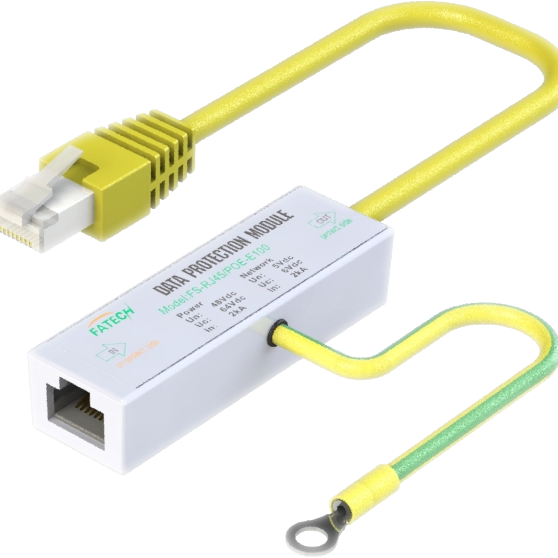

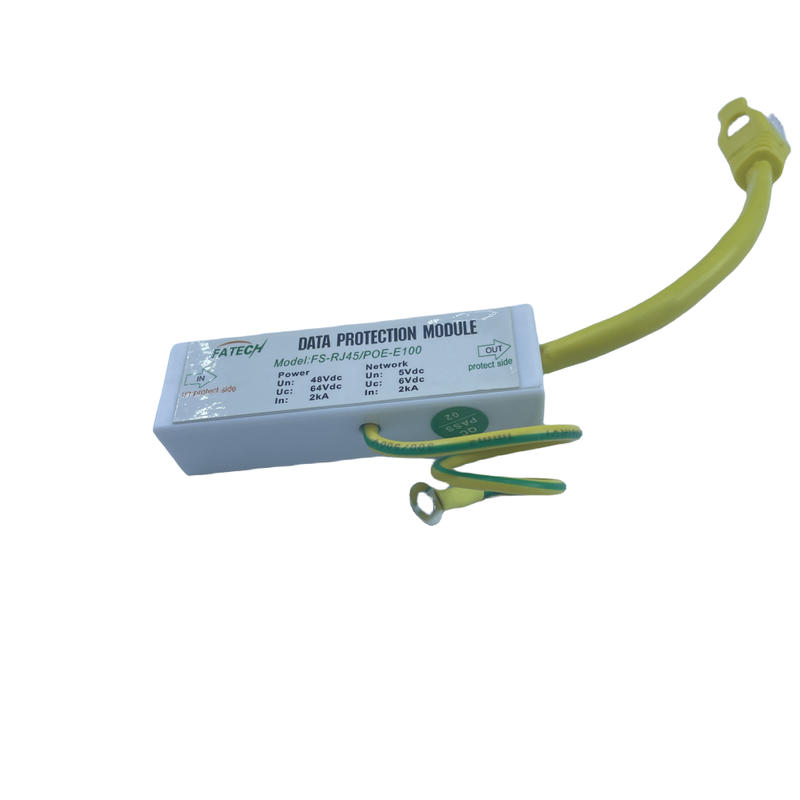

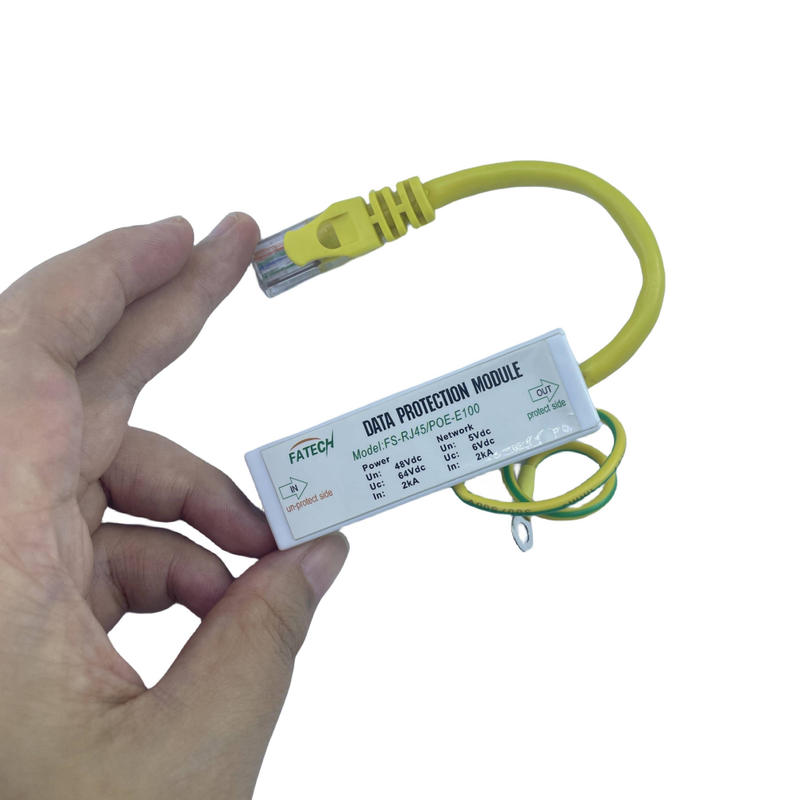

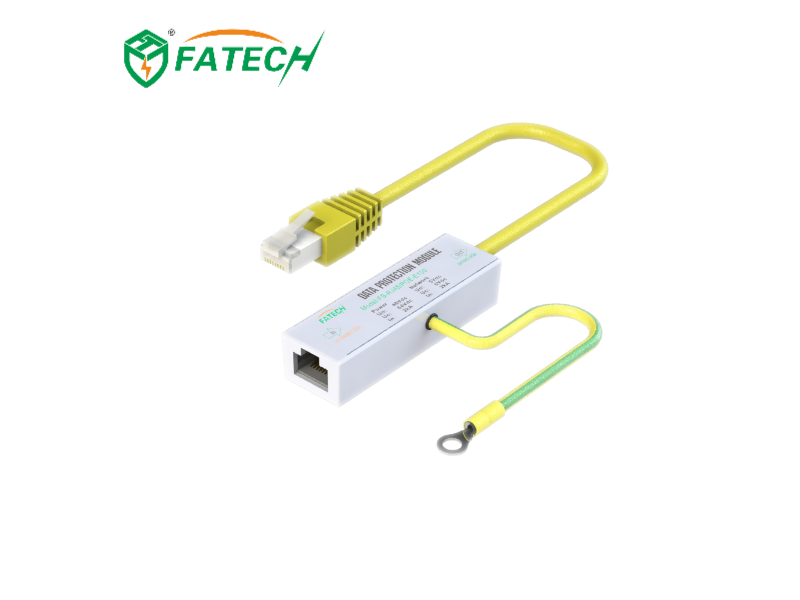

Small Size 1000M PoE Surge Protector
●Products installed in the computer network port, for network line lightning and surge protection
●Standard module structure for 35mm electrical rail installation
●Meet the requirements of lightning protection and electrical characteristics of Ethernet signal lines
●Two-stage composite discharge design, discharge current is large, fast response, low residual voltage
●Install in series，RJ45 interface
●Mainly used in 100M, 1000M and PoE network equipment
Surge protective device for Signal System
1. Product introduction
●Products installed in the computer network port, for network line lightning and surge protection
●Standard module structure for 35mm electrical rail installation
●Meet the requirements of lightning protection and electrical characteristics of Ethernet signal lines
●Two-stage composite discharge design, discharge current is large, fast response, low residual voltage
●Install in series，RJ45 interface
●Mainly used in 100M, 1000M and PoE network equipment

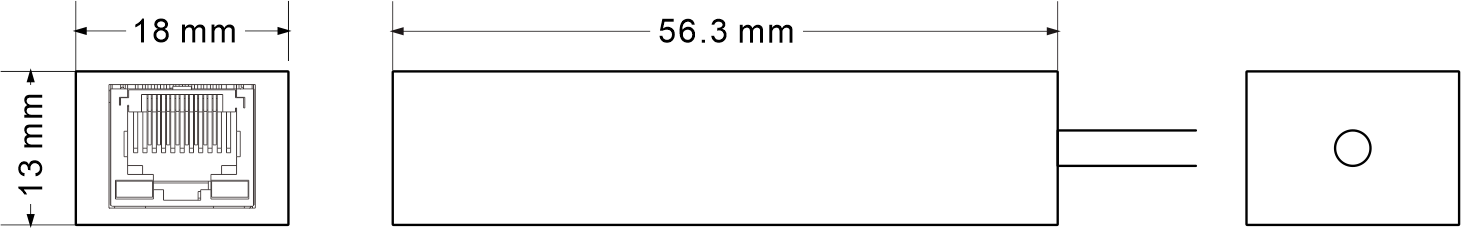

2. Product size
4. Technical specifications
5. Product installation
IEnvironmental requirements
1. Operating temperature：-40℃~+80℃
2. Operating humidity：≤90% (@25℃)
3. Non-flammable and explosive environment
4. Avoid sunlight and rain
Installation instructions
1. The appliance should be installed at the back end of the breakers F1, close to the power switch or protected equipment
2. The product ground wire is connected in parallel to the power line
3. Product wiring should be 2.5 square or more copper wire, wiring as short, thick, straight as possible
4. Check the mineproof box indicators regularly to make sure the equipment is working properly
