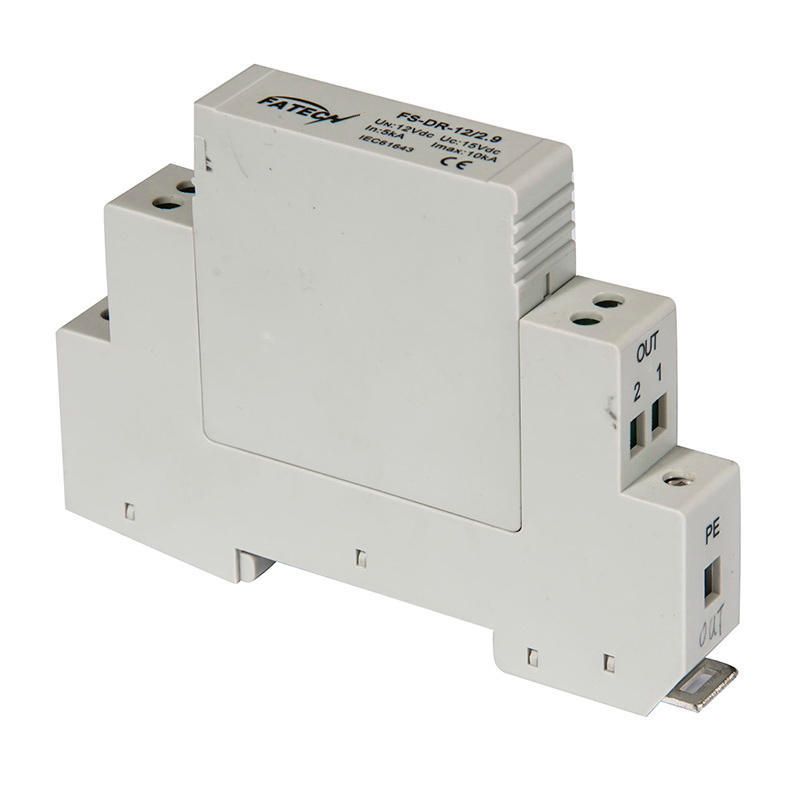

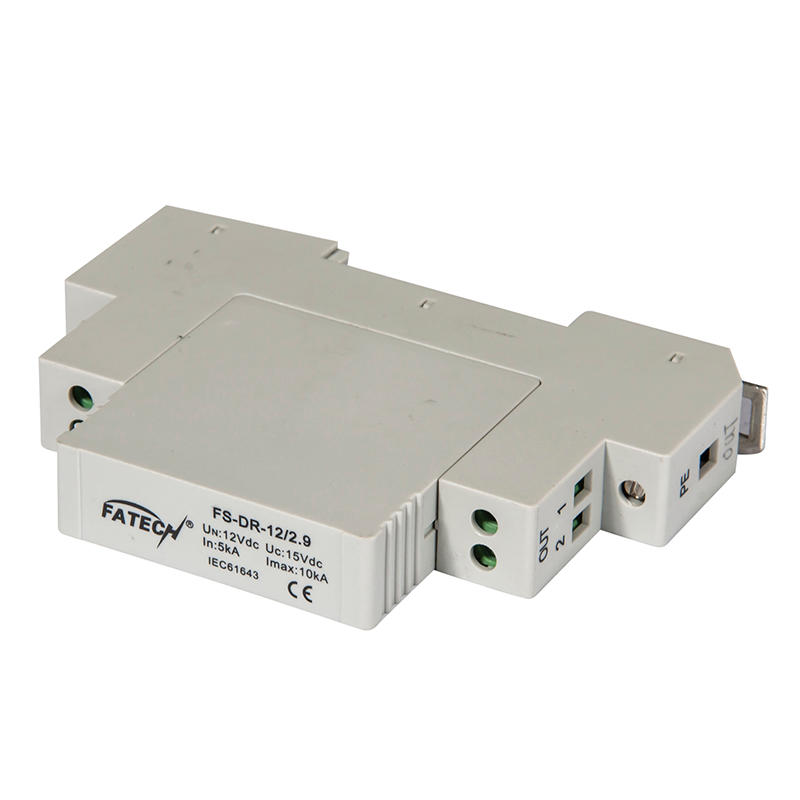

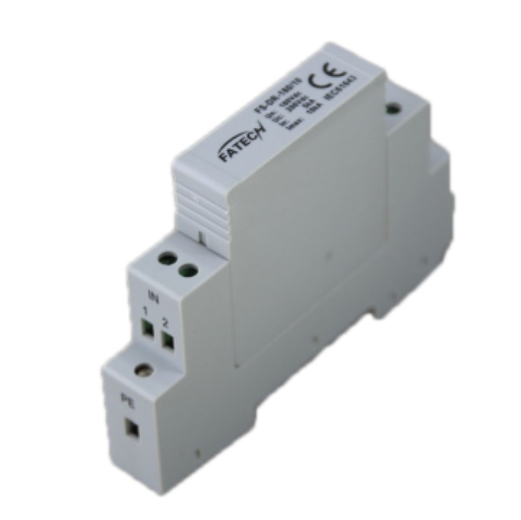

Data Line Din Rail Signal Surge Arreser
Surge protective device for Signal Coaxial System
Model No.: FS-DR-XX/XX
1.Din rail RS485 signal surge arresters are applied to control signal double wire circuit in LPZ0 to LPZ3, e.g. 4~20mA circuit, RS485 circuit, RS422 circuit, gas detector, car-park system, CCTV remote monitor, remote control circuits.
2.Common and difference surge protection mode, excellent performance.
3.The pluggable module allows a fast replacement in case of fail.
4.The grounding is realized through an earthing-clip on the DIN-Rail and / or earthing – clamp.
5.No limiting in operating current due to parallel connecting method.
6.Mounting on 35mm Rail, small space.
1. Dimension & Cirucit
2. Circuit

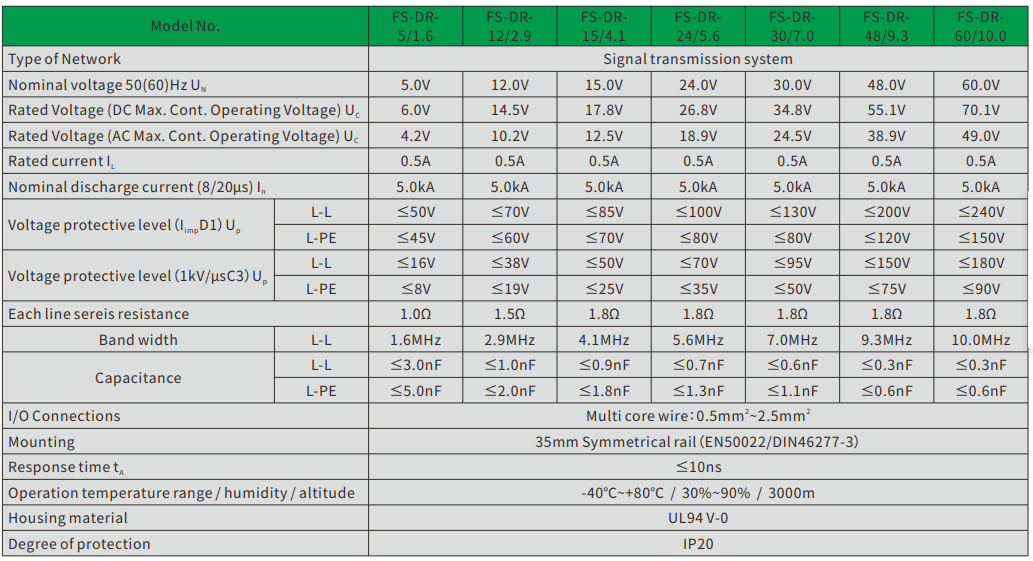

3. Electrical parameter
