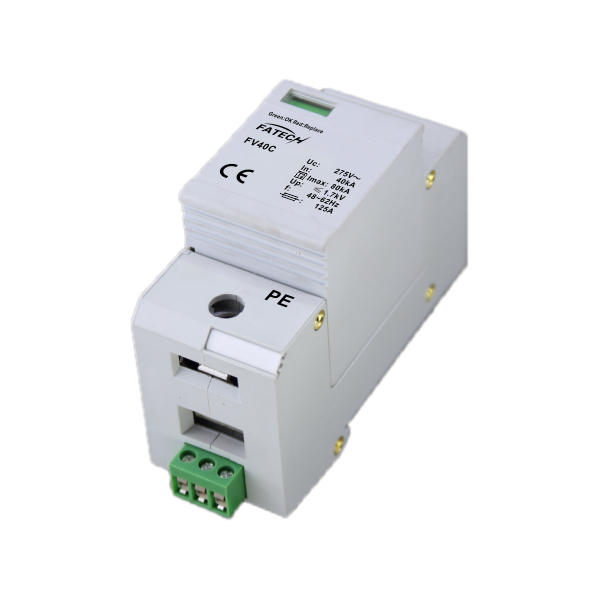

Type 2 80kA 1 Pole AC Surge Protector Device
AC Surge protector device for low-voltage distribution system
Model No.: FV40C/1-xxx S
• Class II / Type 2 surge protector device.
• For using in the lightning protection zones concept at boundary 1-2.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L/N-PE

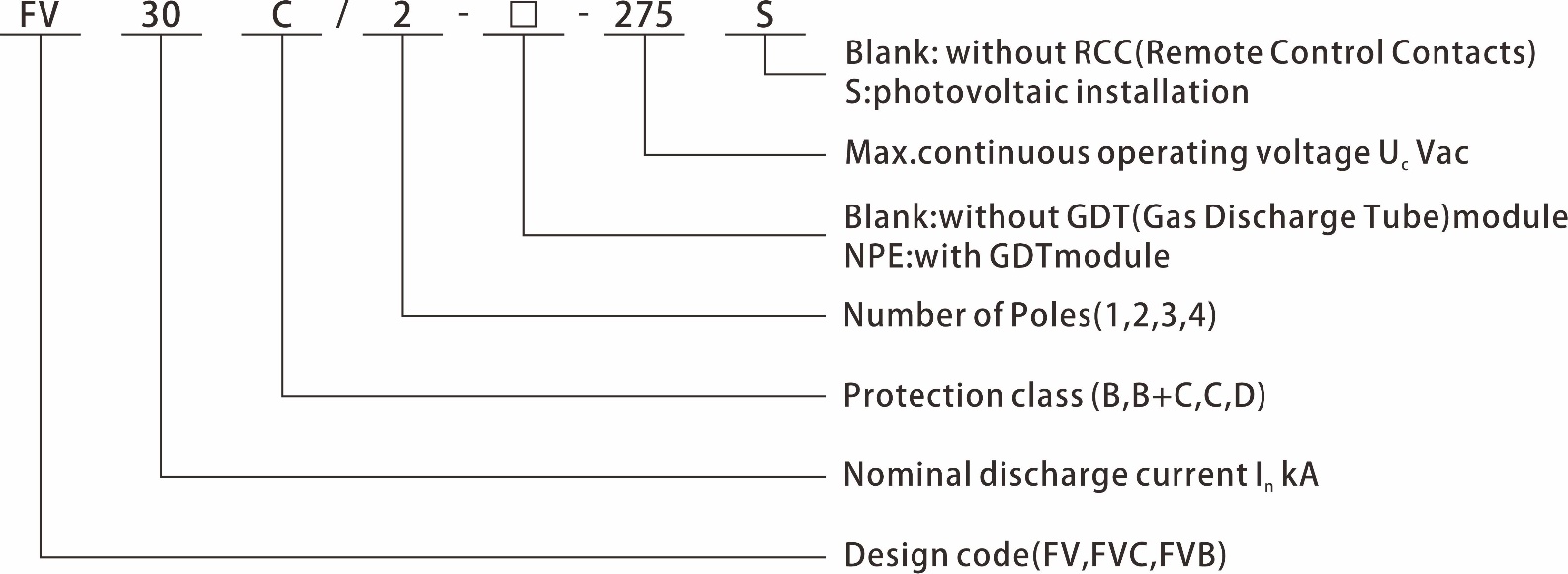

1.Coding

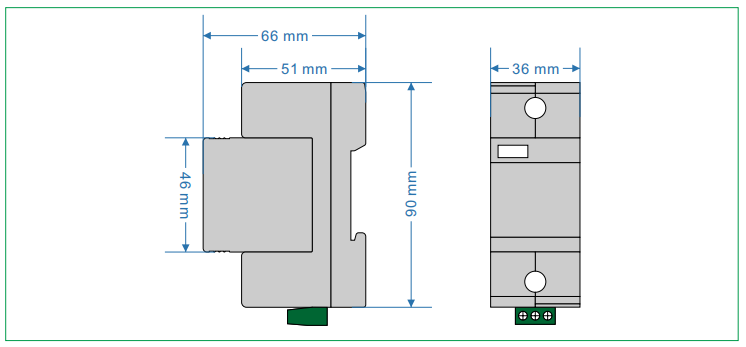

2. Dimension
3. Circuit

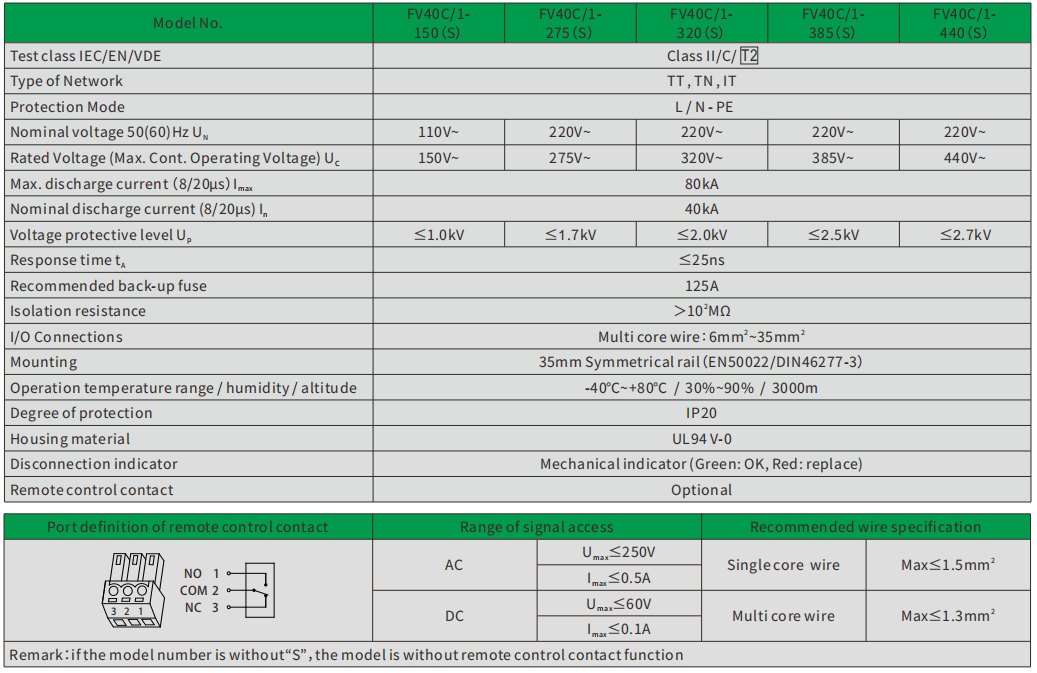

4. Electrical parameters
