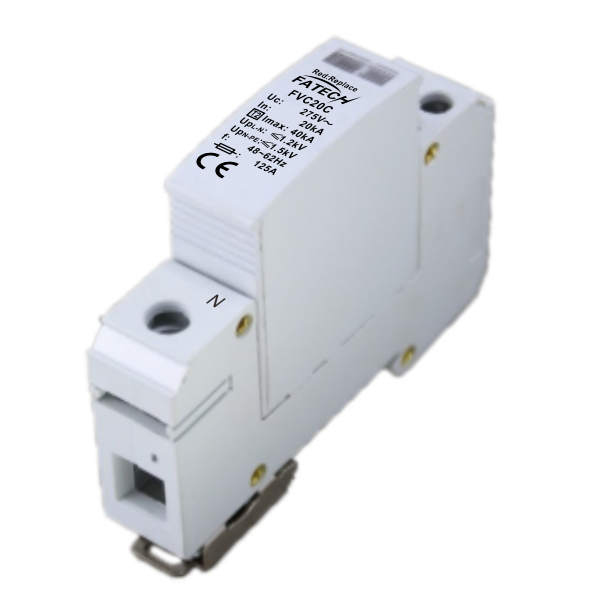

Narrow Size Type 2 40kA 1P+N Surge Protector
Narrow Size AC Surge protector for low-voltage distribution system
Model No.: FVC20C/1+NPE-275S
• Class II / Type 2 surge protector.
• For using in the lightning protection zones concept at boundary 1-2.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L-N , N-PE

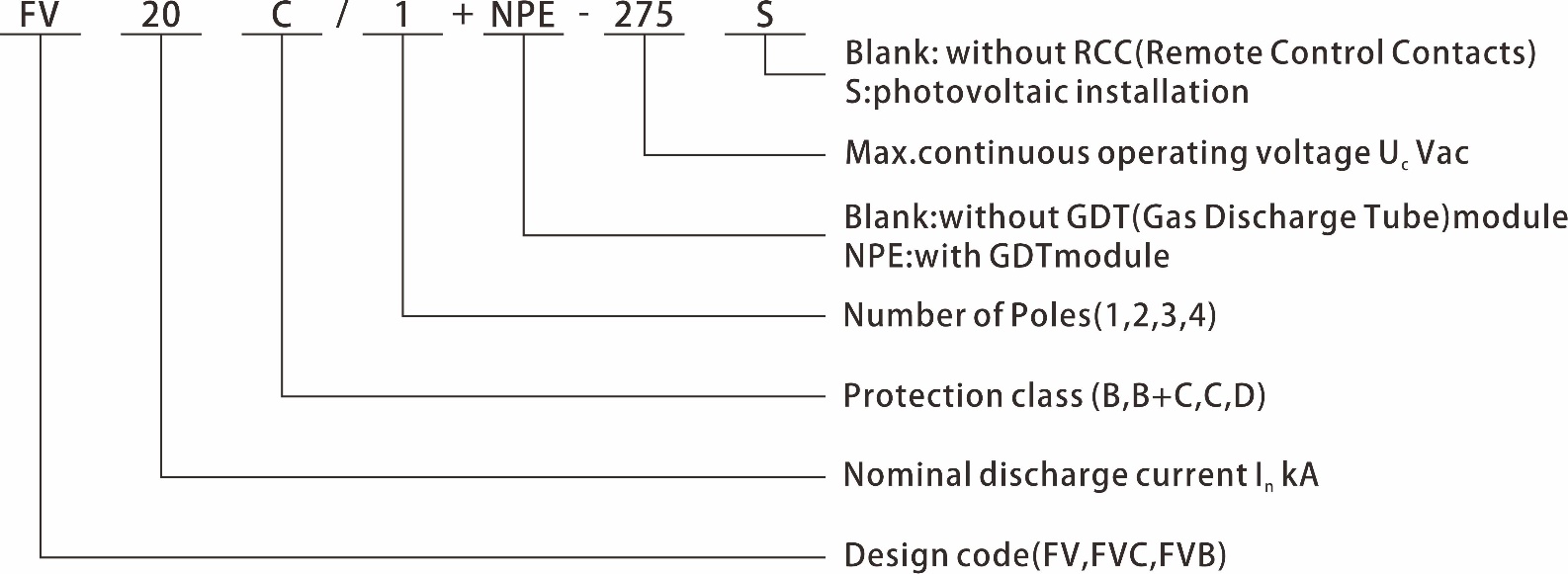

1.Coding

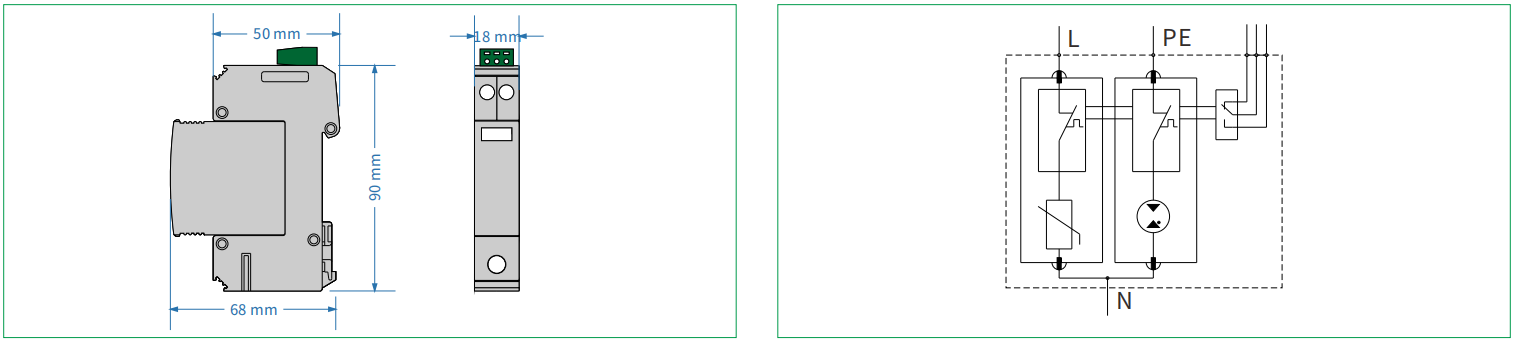

2. Dimension & Circuit

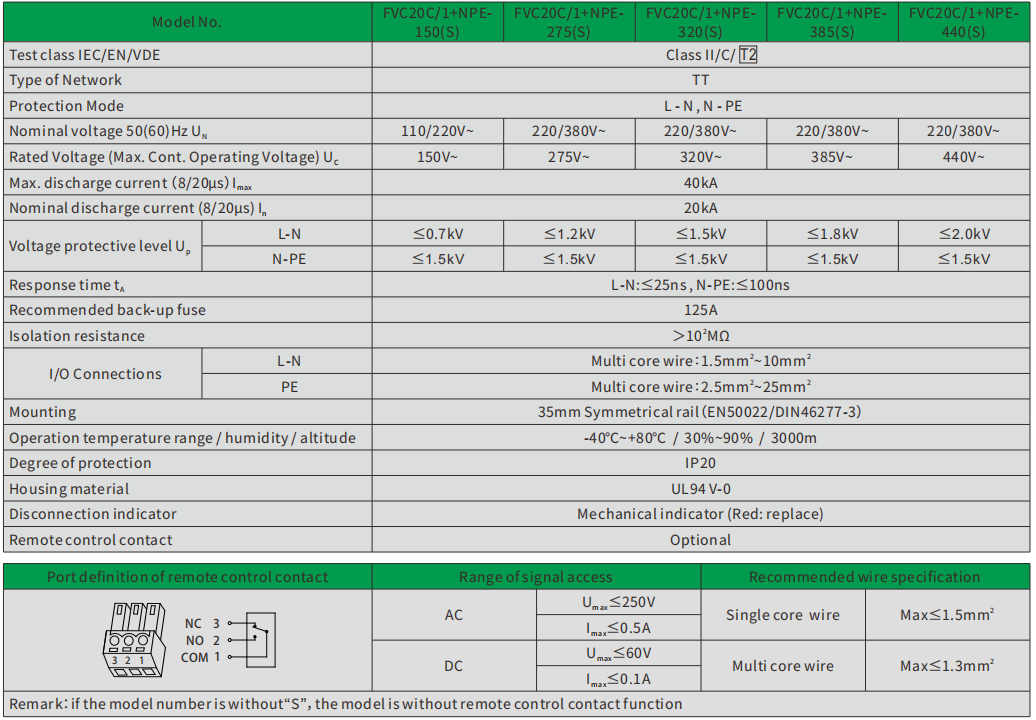

3. Electrical parameters

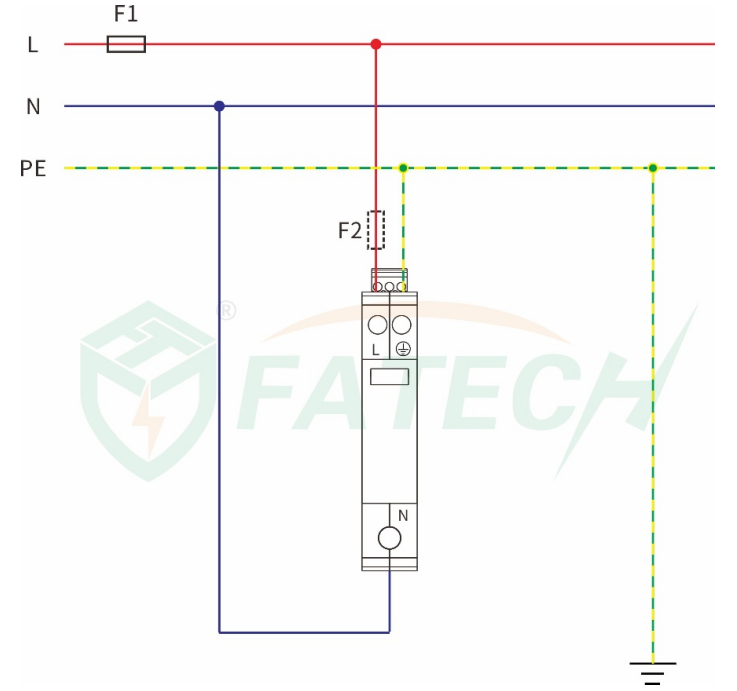

5. Installation
