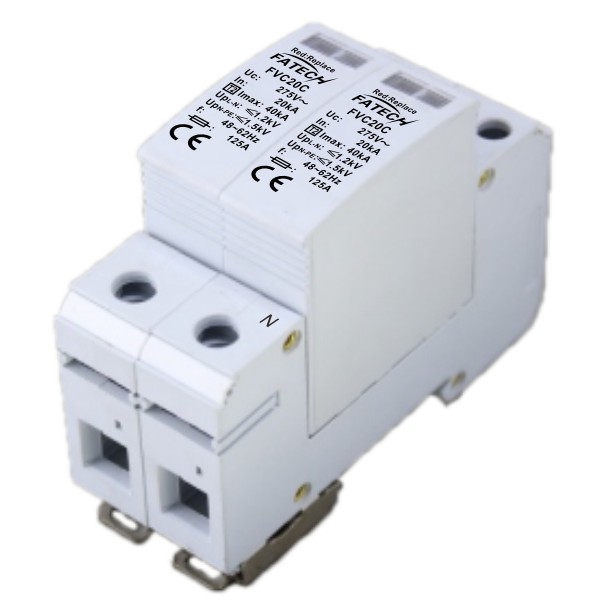

Narrow Size 40kA 3 Phase 3P+N Surge Arrester
Narrow Size AC Surge Arrester for low-voltage distribution system
Model No.: FVC20C/3+NPE-XXX S
• Class II / Type 2 surge protective devices.
• For using in the lightning protection zones concept at boundary 1-2.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L1,L2,L3-N , N-PE

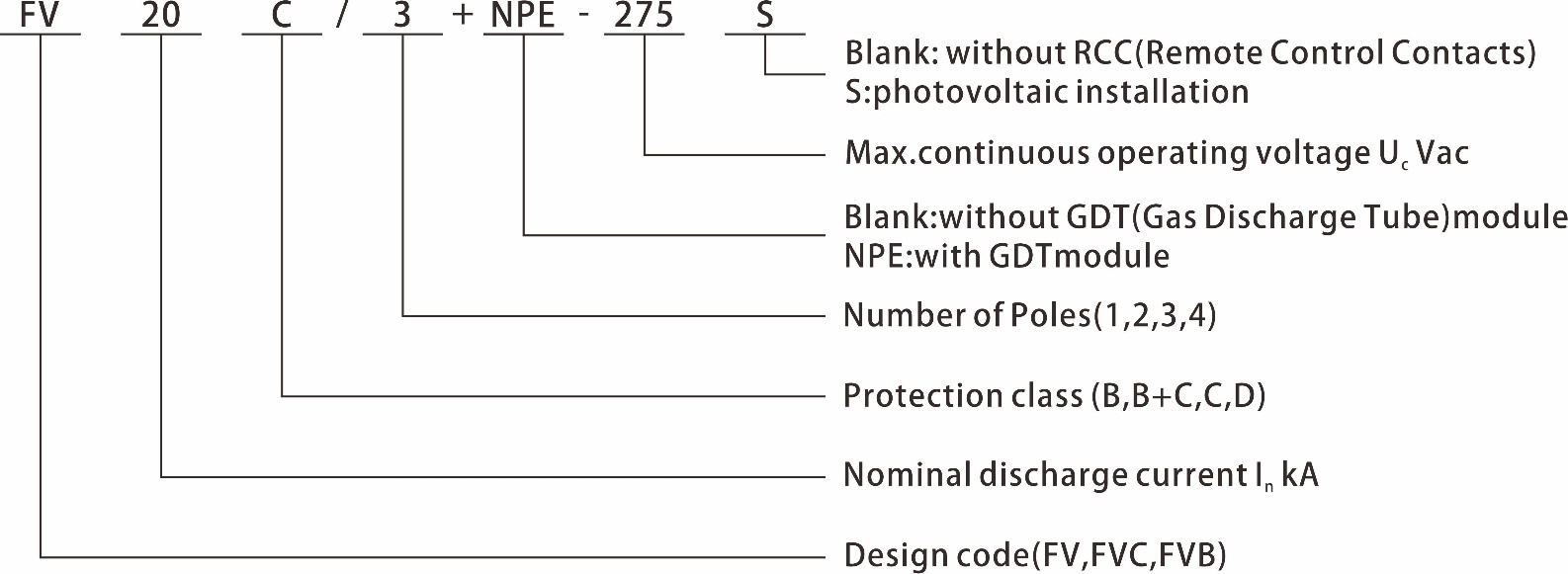

1.Coding

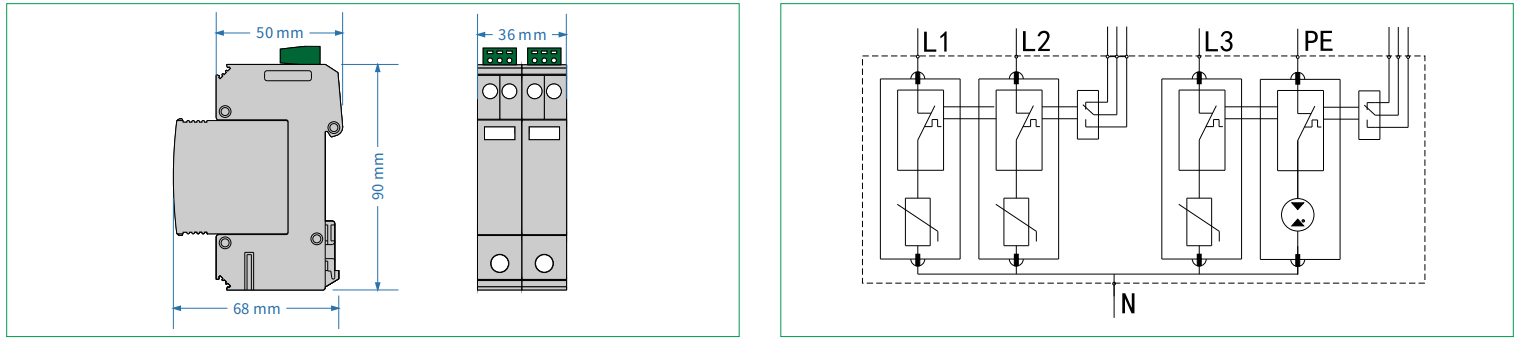

2. Dimension & Circuit

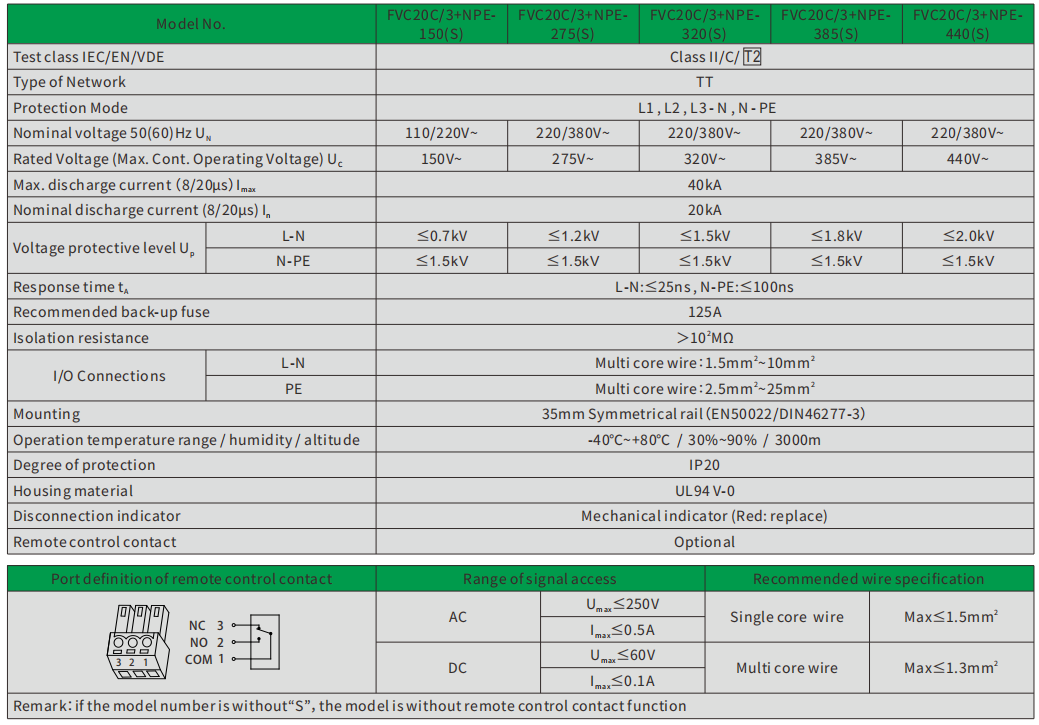

4. Electrical parameters

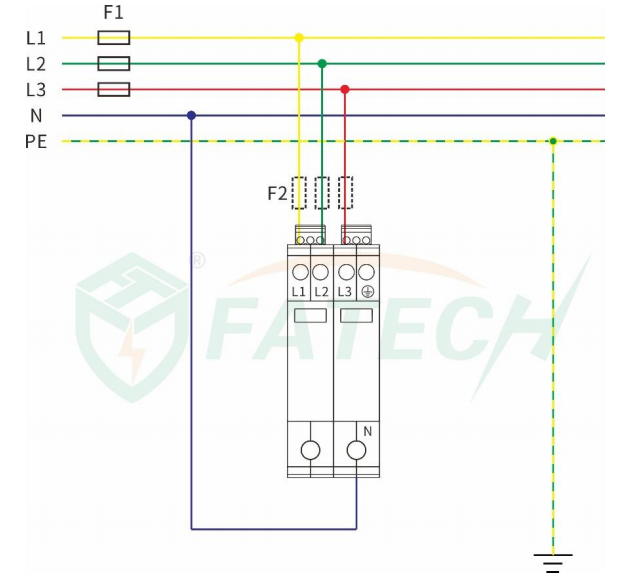

5. Installation
Previous : FV30C 3+NPE 275S 60kA 3P+N surge protective device SPD
Next : Narrow Size Type 2 40kA 1P+N Surge Protector
