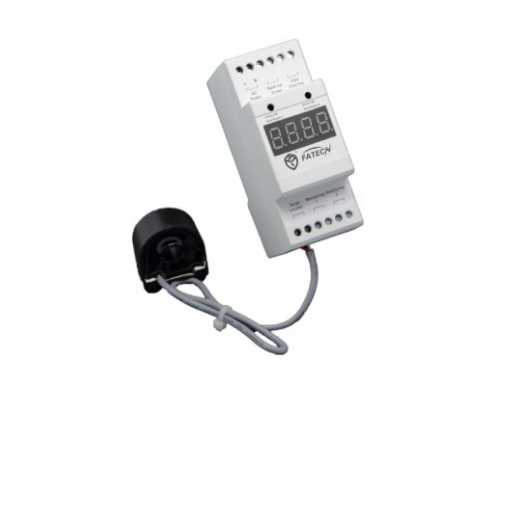

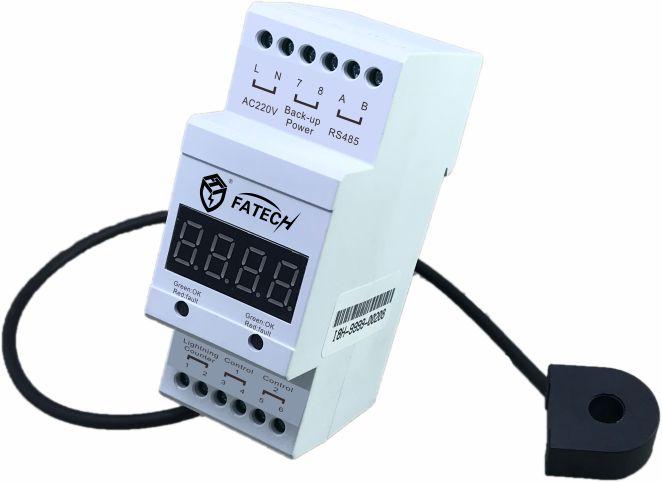

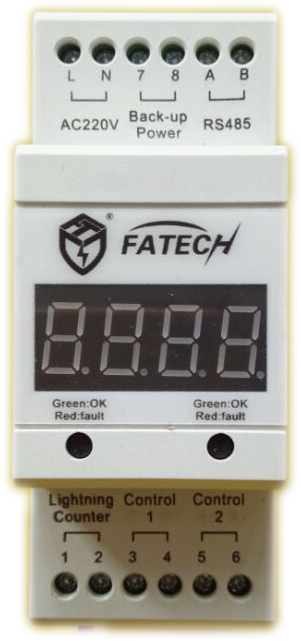

Multi Function Digital Surge Counter
1. Installed together with SPD, or independently.
2. Recording lightning/surge event times, monitoring SPD working status, and/or the front breaker working status.
3. Online display status, terminals for monitor two groups circuit working status (two group SPDs, or one group SPD + one group MCB, or two MCBs working status.
4. Data recorded accurately, 9999 times, data will not lose when power off.
5. Terminal for connecting with back-up power, when power off, surge counter still can work.
6
1.Dimension of digital surge counter
2. Installation of digital surge counter
3. Electrical parameter of digital surge counter
Monitoring Module
Model No.: FLRC-T
Installed together with SPD, or independently.
Recording lightning/surge event times, monitoring SPD working status, and/or the front breaker working status.
Online display status, terminals for monitor two groups circuit working status (two group SPDs, or one group SPD + one group MCB, or two MCBs working status.
Data recorded accurately, 9999 times, data will not lose when power off.
Terminal for connecting with back-up power, when power off, surge counter still can work.
DIN rail installation.
TOVs surge counter with LED display showing at least
change to 4digit. The counter start counting from
4A - 6A at 1 cycle of 50 Hz waveform.

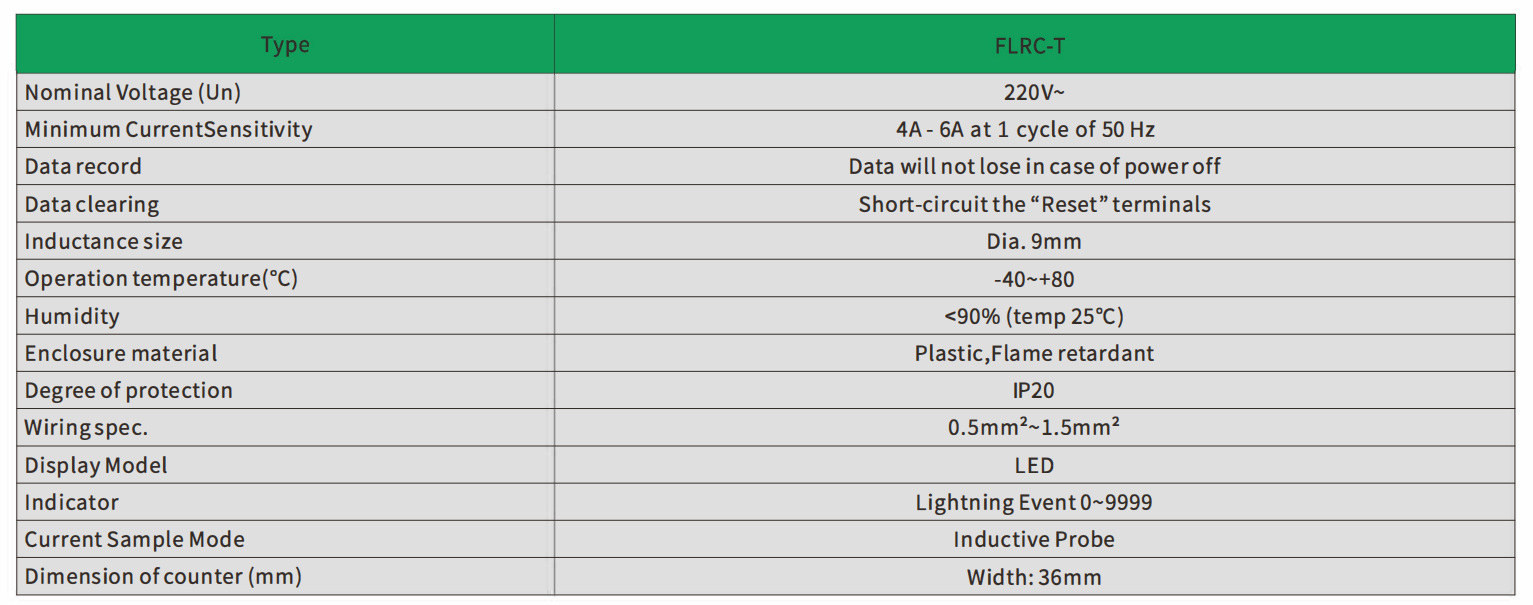

2. Electrical parameter
3.

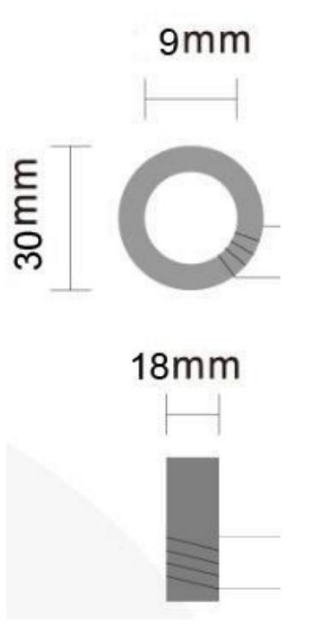

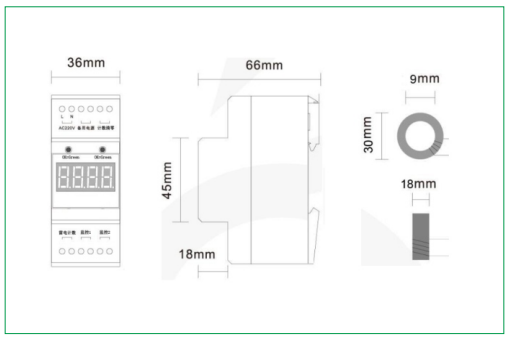

Dimension

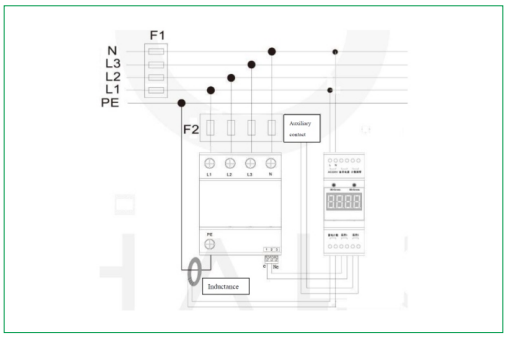

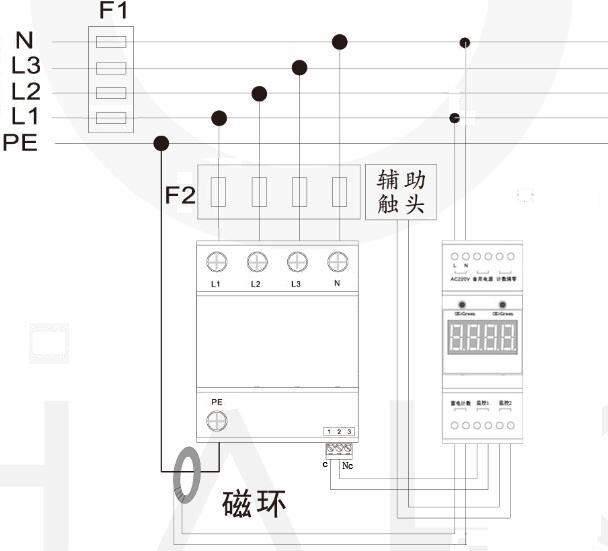

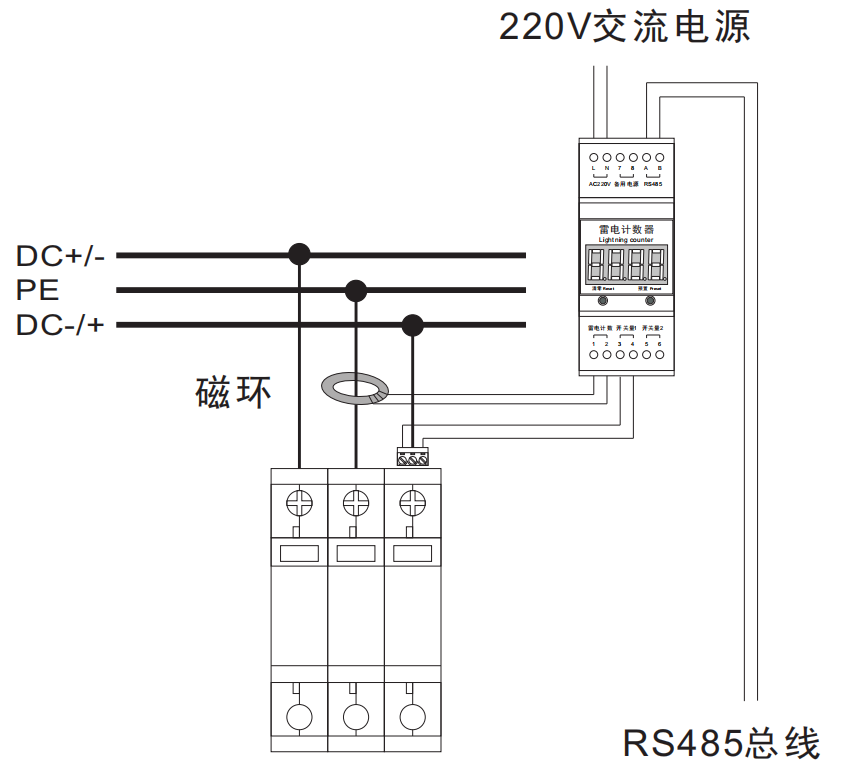

1. Installation
Inductance
Auxiliary contact
Inductance
220V(230V) AC power supply
RS485 LINE
