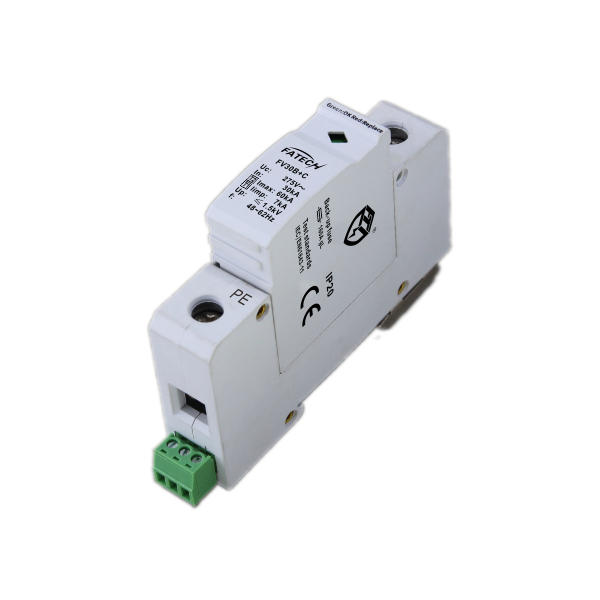

FV30B+C 1 275S type 1+2 7kA 1 pole surge arrester
AC Surge protective device for low-voltage distribution system
Model No.: FV30B+C/1-275S
• Class I+II / Type 1+2 surge protective devices.
• For using in the lightning protection zones concept at boundary 1-2.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.

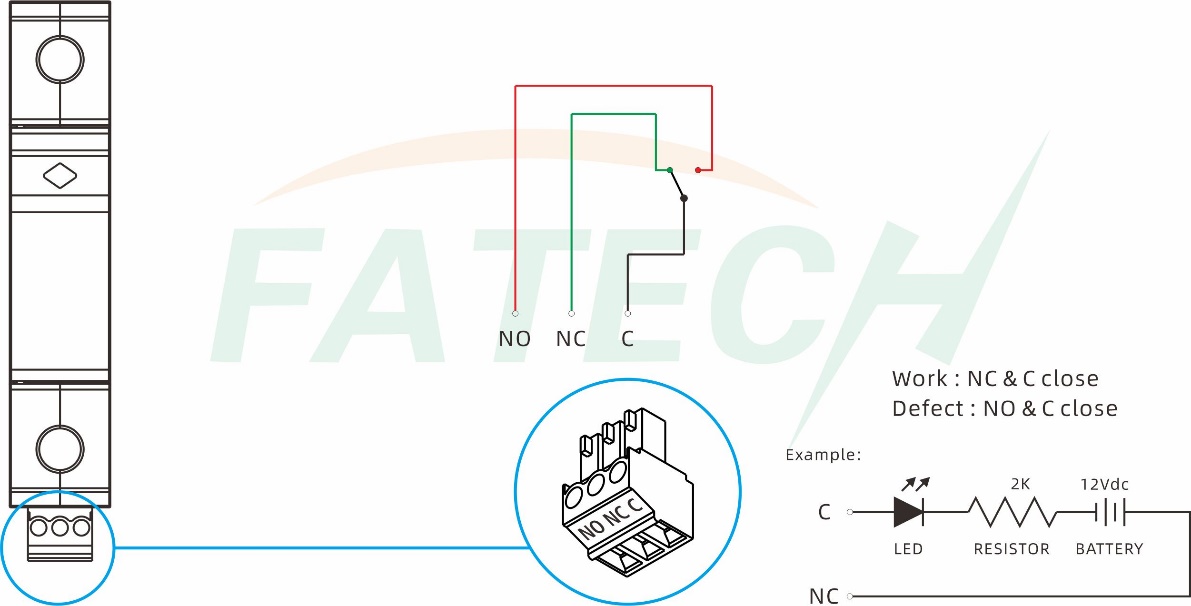

• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L/N-PE

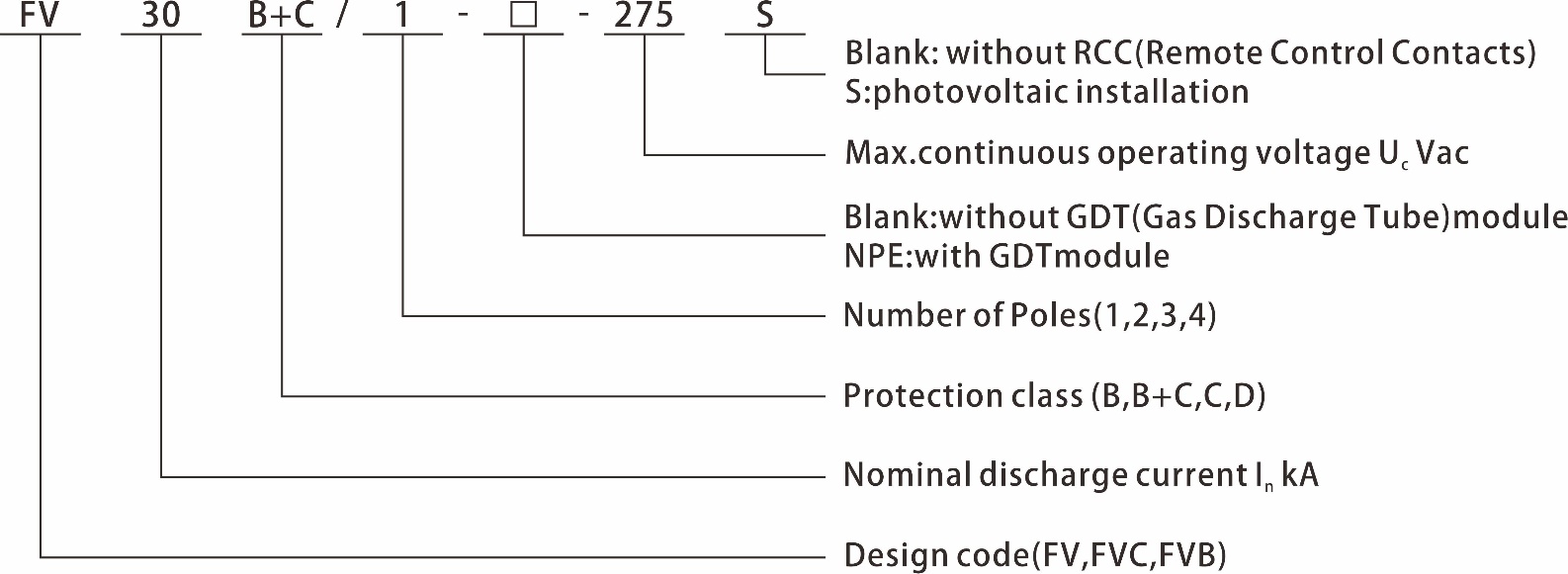

1.Coding

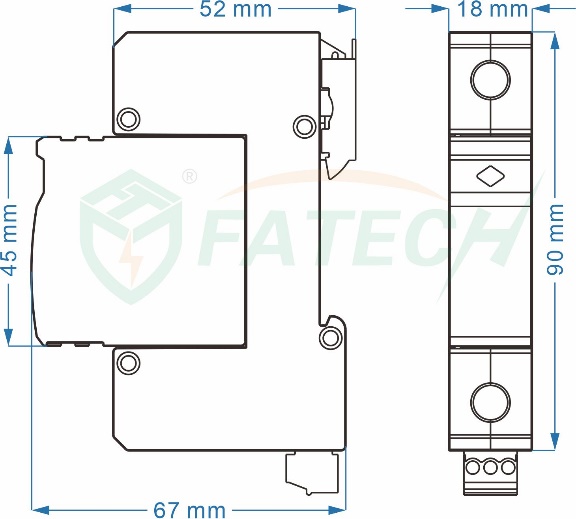

2. Dimension

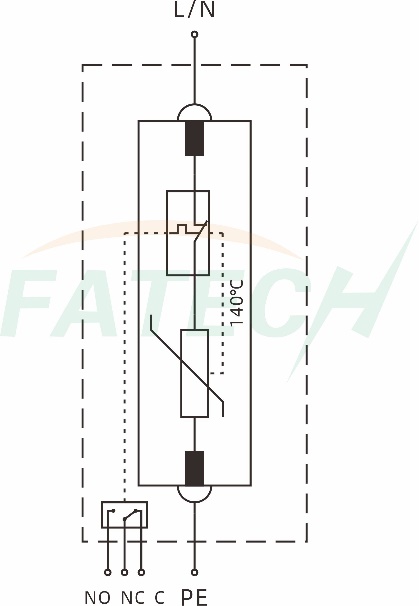

3. Circuit
4. Electrical parameters

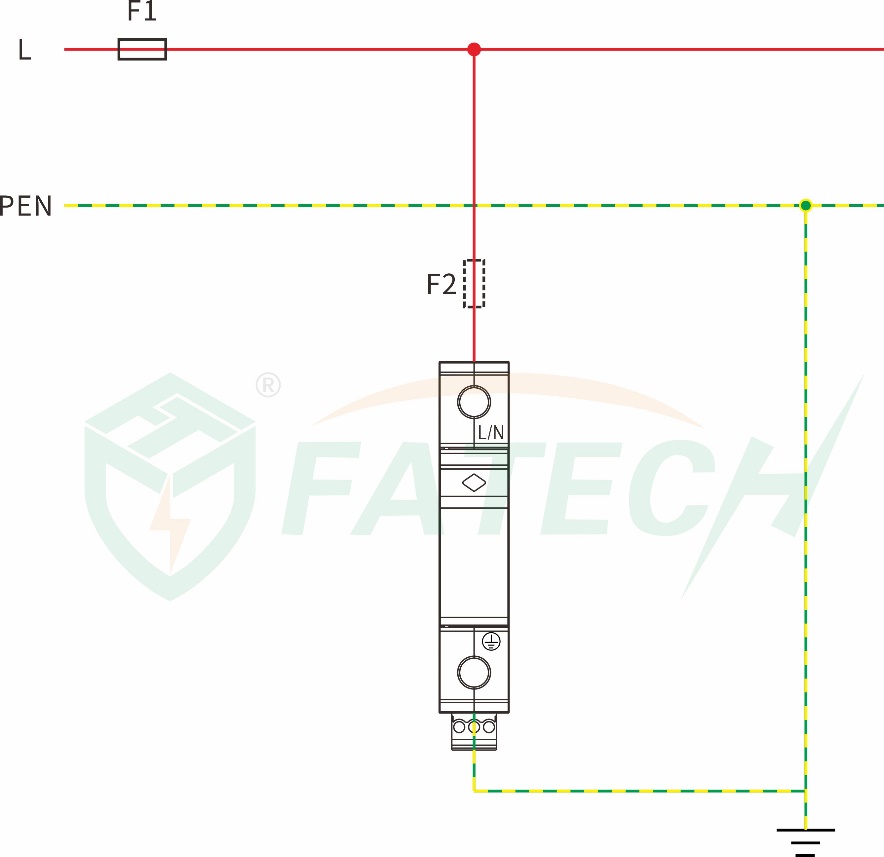

5. Installation
