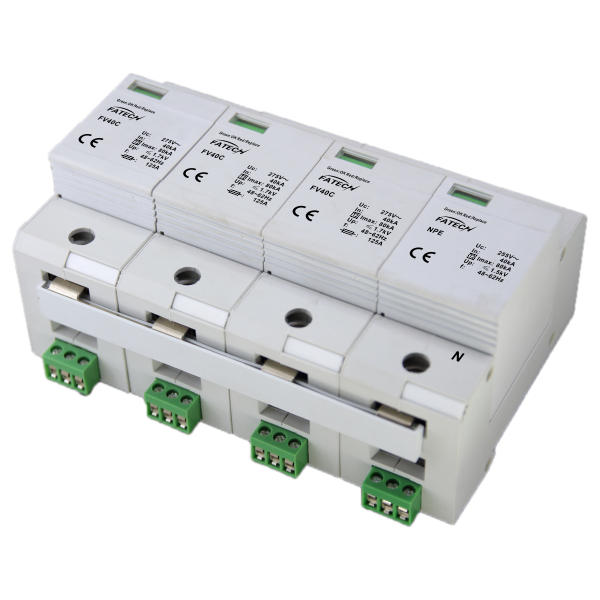

Type 2 80kA 3 Phase 3P+N AC Surge Protector
AC surge protector for low-voltage distribution system
Model No.: FV40C/3+NPE-xxx S
• 3 phase Class II / Type 2 surge protector.
• For using in the lightning protection zones concept at boundary 1-2.
• The core parts are metal oxide vristor components with high discharge capacity.
• Reliable control thanks to Thermo Dynamic Control disconnector.
• With remote signaling contact for control device.
• Fault indication via red mark in the inspection window.
• Protection mode --- L1, L2, L3-N, N-PE

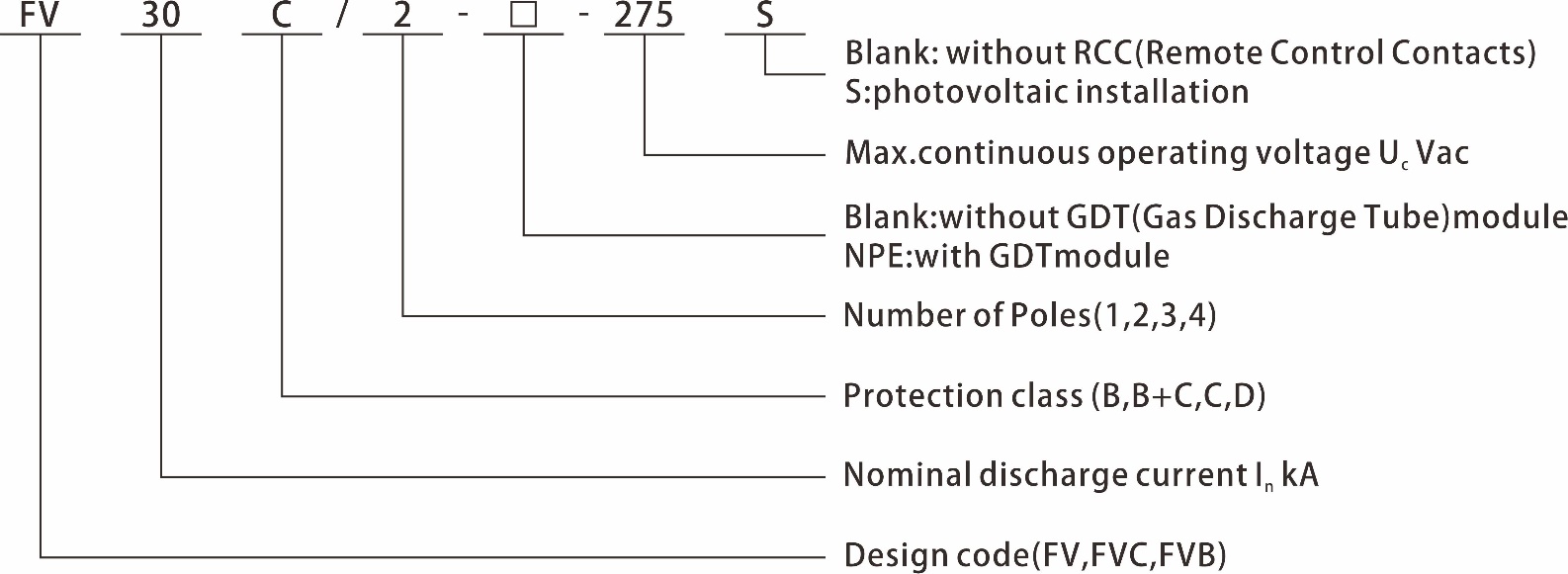

1.Coding

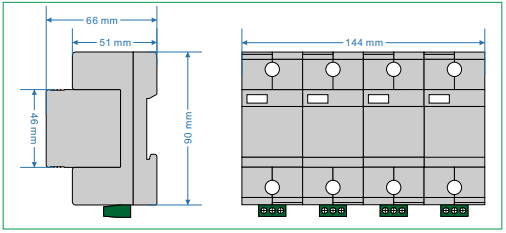

2. Dimension

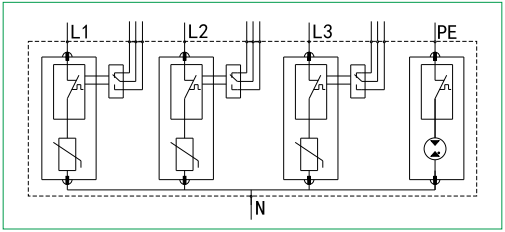

3. Circuit

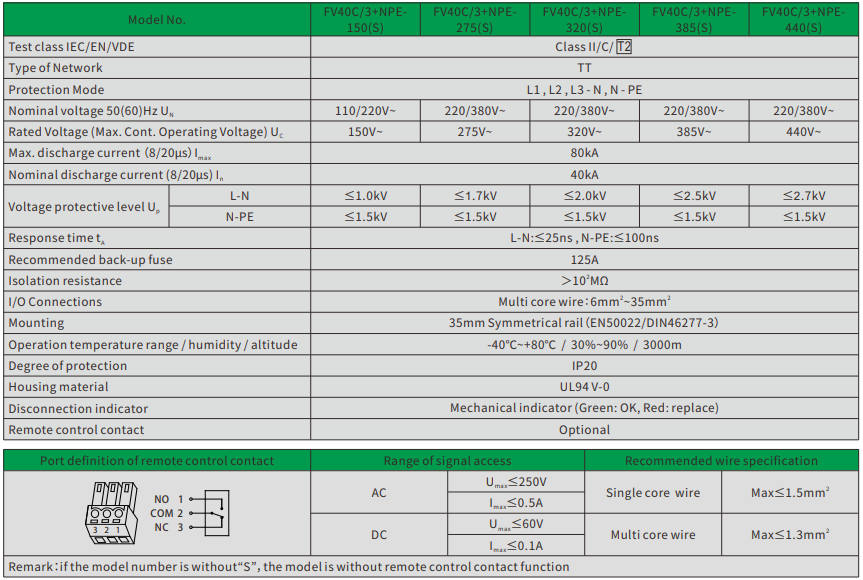

4. Electrical parameters
