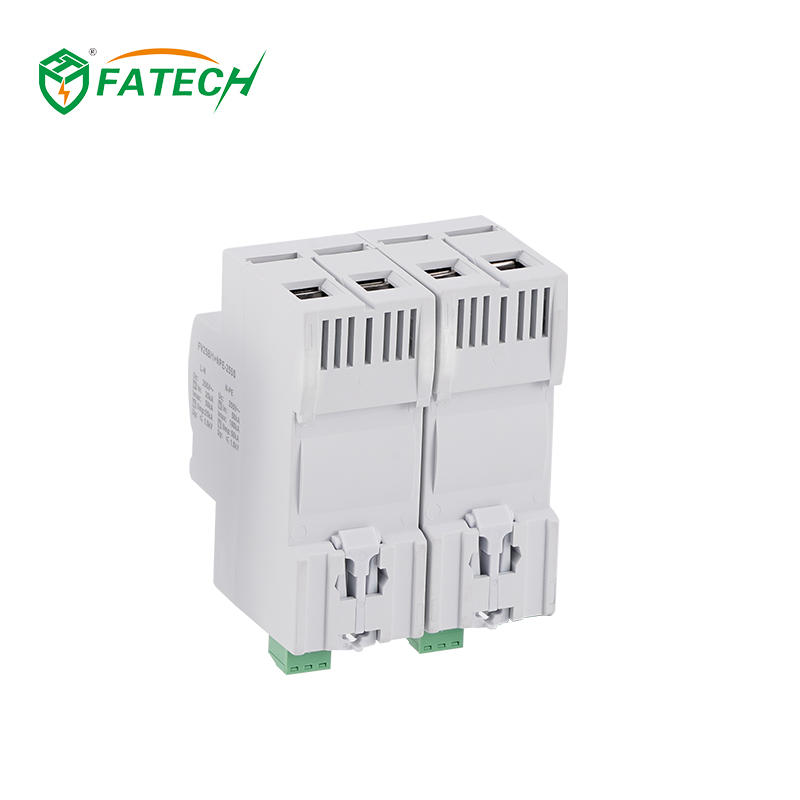

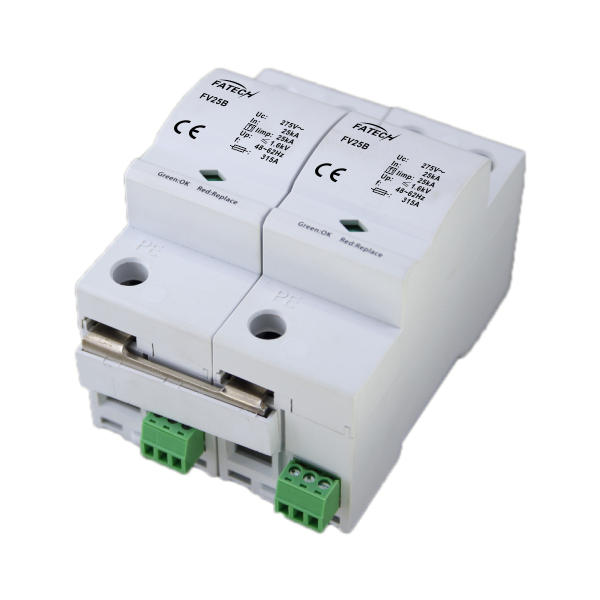

Type 1+2 Iimp 25kA Single Phase AC Surge Arrester

Download Annex

TUV approved AC Surge Arrester for low-voltage distribution system

Model No.: FV25B/1+NPE-385ST


• TUV approved Class I+II/ Type 1+2 surge protector.

• Tested ccording to IEC61643-11.

• For using in the lightning protection zones concept at boundary 0-1.

• The core parts are metal oxide vristor components with high discharge capacity.

• Reliable control thanks to Thermo Dynamic Control disconnector.

• With remote signaling contact for control device.

• Fault indication via red mark in the inspection window.

• Protection mode --- L-N,N-PE


1.Coding



2. Dimension & Circuit


3. Electrical parameters

Model. No.

FV25B/1+NPE-385ST

SPD protection conforms to IEC 61643-11 / EN 61643-11

Class I+II / Type 1+2

SPD installation type conforms to IEC 61643-11 / EN 61643-11

Class I+II / Type 1+2

Protection level conforms to DIN VDE0675-6

B+C

Type of Network

TT

Protection mode

L-N , N-PE

Nominal Voltage   UN

230 Vac/50(60)Hz

Maximum continuous operating voltage   UC

385 Vac/50(60)Hz

Continuous operating current   IC

<20 µA

Residual current   IPE

≤20 µA dc

≤500 µA ac

Standby power consumption   PC

≤25 mVA

Nominal discharge current (8/20μs) [L-N]/[N-PE]   In

≥25/50 kA

Nominal discharge current (8/20μs) [L-N]/[N-PE]   Imax

≥100/150 kA

Impuse discharge current (10/350μs) [L-N]/[N-PE]   Iimp

≥25/100 kA

Voltage protection level @20kA  Up

≤1.6 kV

Isolation resistance   Risol

＞1000 MΩ

Response time   tA

≤100 ns

Follow up current extinguishing capability [L-N]/[N-PE]

≥25kArms /100Arms

Temporary overvoltage (TOV)

≥ 440 Vac/120 min

Remote control contact

YES

Disconnection indicator

Mechanical indicator

(Green: OK, Red: Replace)

Minimum area of connecting cable

16 mm2

Maximum area of connecting cable

35 mm2

Installation location

Inside

Mounting type

35mm DIN rail acc. to EN 60715

Color

Gray

Degree of protection

IP20

Housing material

UL94V-0

Ambient temperature

-40°C ~+80°C

Altitude

≤2000 m (amsl (above mean sea level))

Permissible humidity

95%
